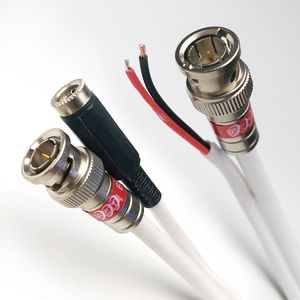

20ft Made to Order White Bare Copper CCTV TVI CVI AHD HD-SDI Security Camera RG-59 Coaxial Siamese Cable 20AWG BNC Connector 95% Braid ETL cm Rated Assembled in USA by PHAT Satellite INT

In this video I'll demonstrate how to attach a BNC connector to Rg59 coax cable for use of CCTV camera applications. Let's get started. On our bench we have all the supplies that will be used. First we have a piece of Rg59 Siamese coax cable. This is an industry standard cable used in CCTV camera installations. This is a compression type F connector. This is an F to BNC male connector. This is a Tl33 coax compression tool. This is a Tl22 cable stripper. And last, this is just a standard wire cutter. First step is to use our cable stripper to strip the coax cable properly. Place the Rg59 in the Tl22 cable stripper so that around an inch is sticking out beyond the tool. Then rotate the cable stripper around the cable 5 to 10 times until you no longer hear the tool cutting. The Tl22 actually makes 2 different cuts in the cable. A deeper cut is made to strip away all layers of the cable so
