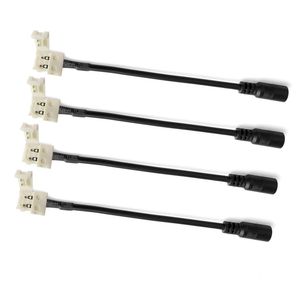

SoundOriginal 8mm (SMD3528) Strip to DC LED Light Strip Connector - 3528 to Transformer DC Jack - Connector of Single Color LED Strip Light, Connector Strip to Power Adaptor (4pack)

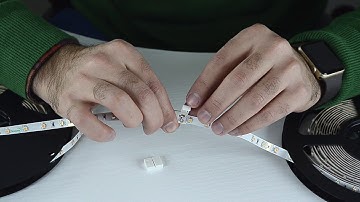

[Music] hi today I'm going to show you how to connect any D strip using various connectors we have here an NS 1 strip 4.8 watt per meter we can use a variety of different connectors depending on the application and is ten can be used for a continuous run LS 11 is used to connect strip to the driver LS 12 is used to connect two strips with an extra length of cable this is for linking around corners and angles ideally for difficult angles NS 13 is a rigid 90 degree corner connector so let's connect the strip we will start with connecting two reels of strip take the end of the strip you would like to connect as you can see there are cutting points we will simply attach the clip to these points so open the connector you will notice that there are two metal contacts in the connector gently insert the strip into the connector make sure the strip goes below the ridges on either side do not use
