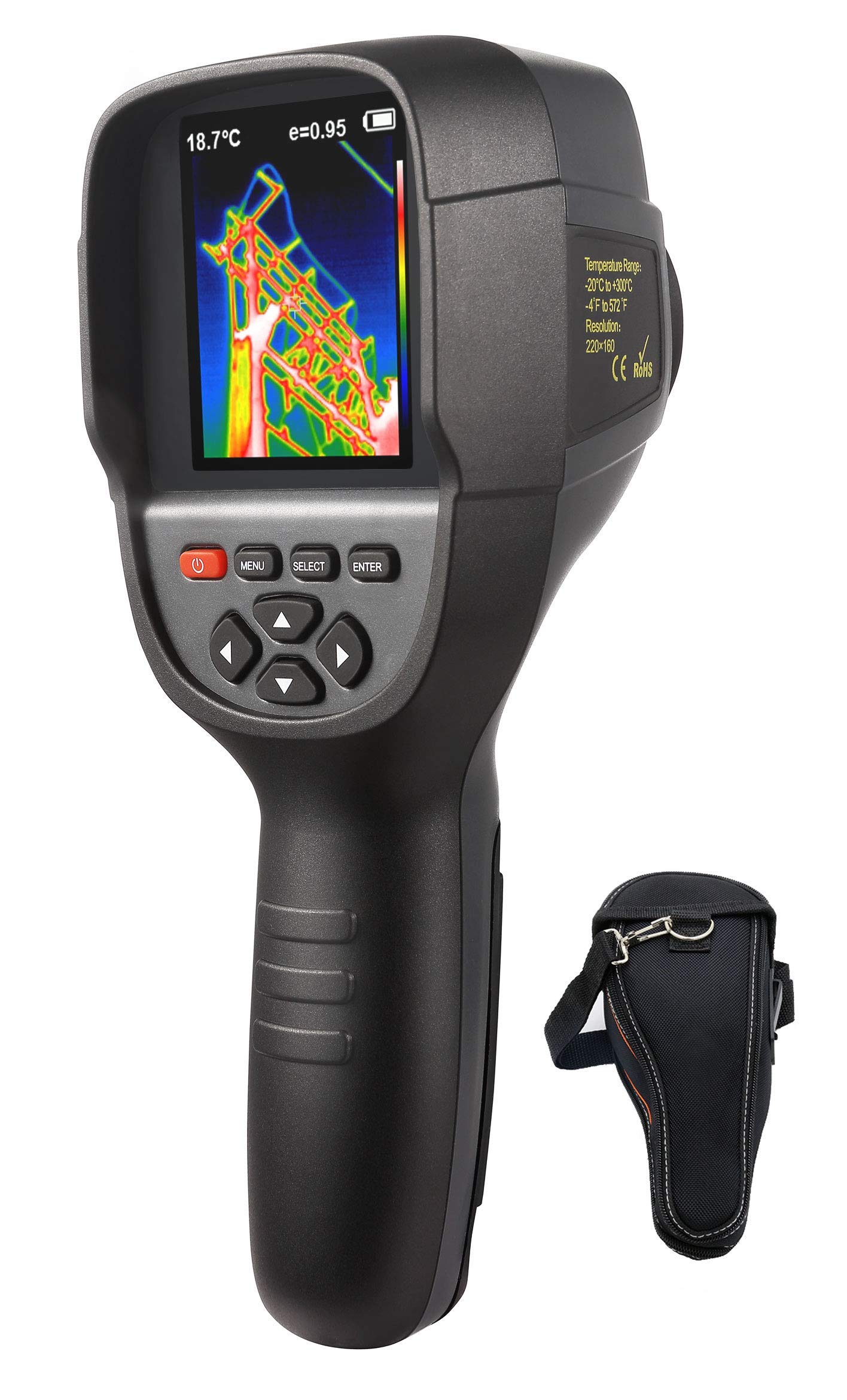

This infrared thermal imager combines the functions of surface temperature and real-time thermal imaging.
It is professional, precision and efficient. Infrared thermal imager that can blend the visible and infrared images.
specification
Display: 3.2 inch full viewing angle high-resolution TFT color screen
Infrared Image Resolution: 220 * 160
Resolution of visible image: 0.3 million pixel
Total Pixel: 35200
Field Angle / Shortest Focal Length: 27°×35°/0.5 m
Thermal Sensitivity: 0.07℃
Measuring Mode: Thermopile
Temperature Range: -20℃ to 300℃(-4℉ to 572℉)
Measuring Accuracy: ±2.5℃ or ±2.5%
Emissivity: Adjustable from 0.1 to 1.0
Image Frequency: 9HZ
Wavelength Range: 8-14μm
Focus Mode: Fixed
Color Palette: Rainbow, iron oxide red, cold color, black & white, white & black
View Option: Full infrared and full vision Visible image with 25% step length
Image Storage Medium: Built-in 3G
Image Format: JPG
USB: Micro USB2.0
Set Control: Unit Adjustment/Language/Date Time Format/Automatic Power-off
Automatic Power-off Time: Selectable 5 mintues/20 minutes/ not power off automatically
Battery Type: 1 * 3.7V Built-in Rechargeable Battery (Included)
Certification: CE, RoHS
Operating Temperature: 0℃ to 50℃ / Storage Temperature: -40℃ to 80℃
Material: ABS
Package List:
1 * Thermal Imaging Camera 1 * User Manual 1 * Drop Resistance Rope 1 * USB Line 1 * Protection bag
