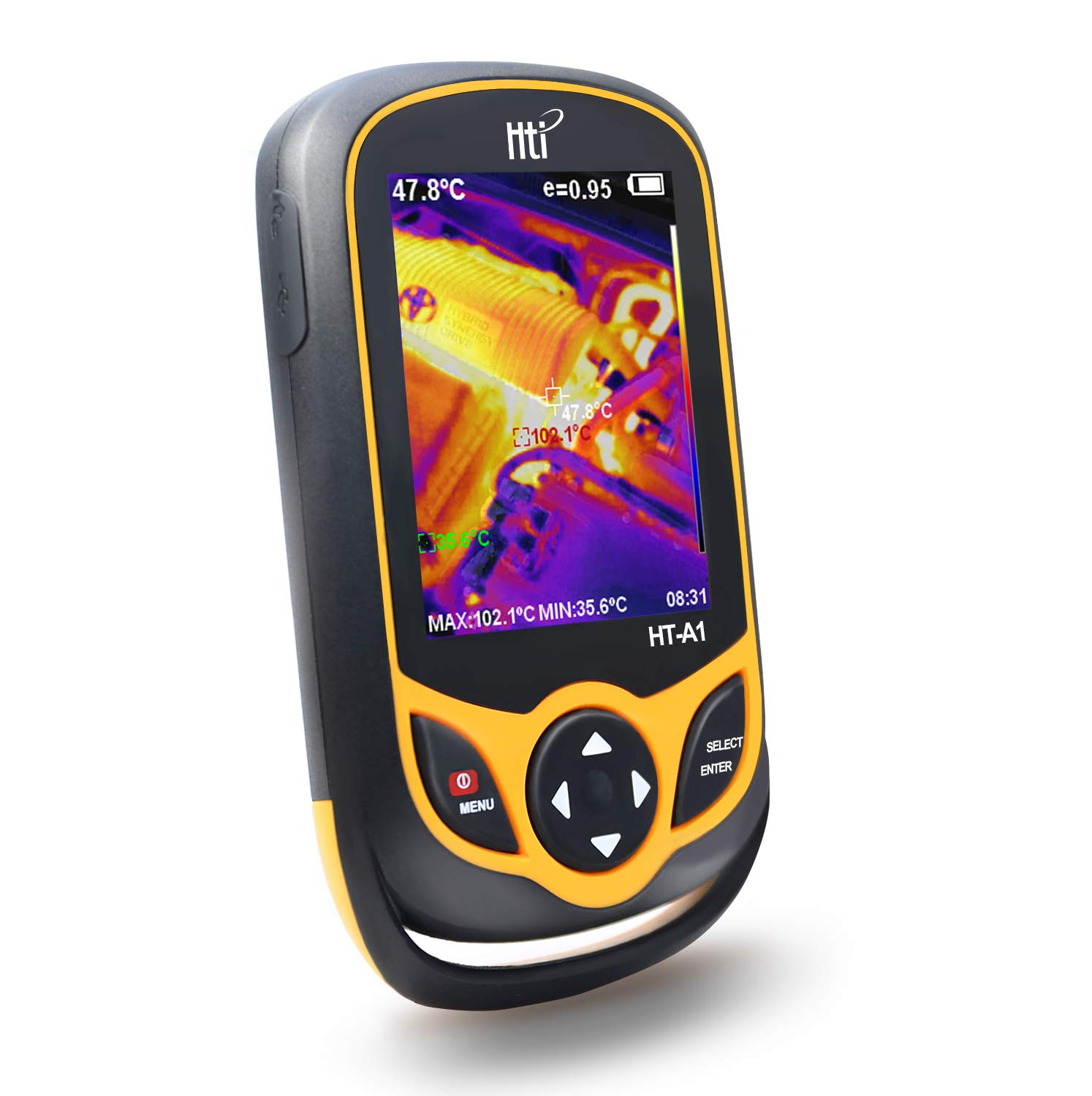

Hti-Xintai HT-A01 is a fully featured pocket-sized thermal camera. It can use to reveal hidden issues in building and mechanical. Keep it by your side and find hidden heat patterns:

• Water Leaks
• Air Leaks
• Missing and Compromised Insulation
• HVAC Issues - Heating and Air Conditioning
• Electrical Hot Spots
• Underfloor Heating
• Plumbing Problems
• Roof Leaks
• Stud and duct placement
• Mechanical Equipment Failures
• Solar Panel Evaluation

Specifications:

• Display: 3.2" full angle TFT display
• IR sensor size: 220×160
• Digital camera: 640 × 480 pixels
• Field of View/shortest focus length:35°×26°/4.0mm
• Thermal sensitivity: 0.07°C
• Temperature range: -4°F ~572°F ( -20°C ~300°C）
• Measuring accuracy: ±2% / ±2°C
• Spectral range: 8~14μm
• Emissivity: 0.1-1.0
• Image frequency: 9Hz
• Focus Mode: Fixed
• Color palettes: Rainbow, iron oxide red, cold color, black heat, and white heat
• Power supply: Built-in chargeable 1800battery
• USB Connector Type: USB Micro-B: Data transfer to and from PC
• External Power Operation: AC adapter,90-260V AC input ,5V output to camera
• Operating temperature range: 32 to113°F (0°C to 45°C)
• Storage temperature: -4 to 122°F (-20°Cto 60°C)
• Operating Humidity: <85%RH
• Storage medium: Built-in 3G (above 2million images stored )
• Size: 140×80×28mm (5.5 x 3.1 x 1.1")
• Weight: 0.46lb (208g)
• Warranty: Two years of warranty against manufacturing defects.

What's in the box?

• Infrared camera
• Lanyard
• Power supply/charger with EU, UK, US, CN
• Printed documentation
• USB cable
