Features:

This bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V and steps up 3.3V to 5V at the same time.

This level converter also works with 1.8V and 2.8V devices.

Each level converter has the capability of converting 8 pins on the high side to 8 pins on the low side.

The level converter provide serial interface compatible with UART/IIC/SPI port is very easy to use.

voltage Range

VCCA side voltage range:1.2V-3.6V

VCCB side voltage range:1.62V-5.5V

Applications:

5V and 3.3V SCM module

3.3V and 5V SCM module

SCM and SD card level conversion

SCM and iic,spi serial port devices level conersion

Package Included

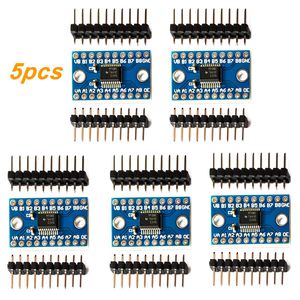

5x Logic Level Shifter

10x Pin Header
