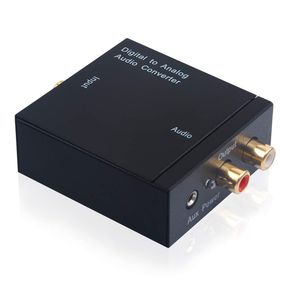

This digital to analog converter has many features that enable it to perform in an excellent manner. Among these features, you will find:
1、Converts Coaxial or Toslink digital audio signals to analog L/R audio
2、Supports sampling rate at 32, 44.1, 48 and 96 KHz.
3、24-bit SPDIF incoming bit stream on left and right channels
4、Provides electromagnetic-noise-free transmission. 5、Easy to install and simple to operate.

CONNECTION AND OPERATION:
Before installation, please make sure all devices you wish to connect have been turned off.
1、Connect the audio source device to the Converter using appropriate Toslink or Coaxial cables.
2、Connect the A/V Receivers or Amplifiers to the Converter using appropriate L/R cable.
3、 Insert the DC side of 5v power supply into the converter and then connect the AC side of the power supply into the wall outlet.

Note: When connected to the Toslink and Coaxial cables at the same, the product will give priority to Toslink input

Product specifications:
size 2.16*2.36*0.9 in
weight 2.75oz

Note:
Do Not Use Other Plugs, It Can Only Use 5V 1A Plug.
Please set your TV audio output to PCM / LPCM: Device homepage--system setting--image and sound---voice
setting--digital audio output--PCM/LPCM.
If Panasonic TV, please set TV audio output to SPDIF output.
If Samsung TV, please turn on its external speakers : menu - sound - speaker settings - external speakers - on.
This DAC may have some compatibility problem with Youtube or Netflix.

AIMOS makes every effort to improve your customer experience because your satisfaction is with us Very important.
If you need help or a suggestion for our products, please feel free to contact us.
