Notes: Both The Indoor Monitor And The Doorbell Can be Powered By The Switch,With POE Function.

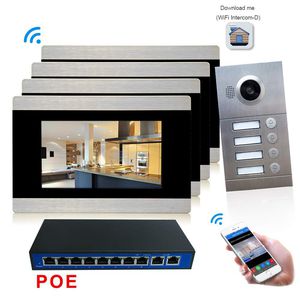

Size :4 Monitor 1 Camera
Features:
♦ Support iOS & Android smart phone
♦ Device to device in TCP/IP protocol, device to smart phone in SIP protocol
♦ Digital system, CAT5 Network cable connection
♦ Duplex communication
♦ Support intercom between monitors
♦Support setting un-lock time, suitable for different electronic lock
♦Monitor nobody receive call within 30S, the call will transfer to smart phone; Or visitor leave a message for 40S transfer to smart phone
♦ The call will transfer to smart phone if no one answer the call within 30s from monitor
♦Max.support 32G SD card, and leave message max.45s
♦ 8 security zones alarm (support connecting smoke detector...etc)
♦Max support 3 smart phone to unlock the door account (Never miss your call)
Descriptions:
Indoor Monitor: Monitor:7" TFT touch screen
Resolution:1024(H)*3(RGB)*600(V)
Leave Message Time:30s/60s/90s
optional Power Consumption:400mA Max.
Power Supply: External Power DC 12V
Operation Temp:-40℃ +50℃
Outdoor Camera:
Camera Sensor:1.0MP
View Angle:110º Wide Angle
Lens LEDs For Night Vision: 6 pcs LED
Power Consumption:200mA Max.
Dimension:128mm*48mm*49mm
Material: Aluminium alloy
Power Consumption:200mA Max.
Package Included:
4x Indoor Monitor;Monitor Mounting Plate
4x Power Adapter
4x 200mm 7 Pin Connector
1x Outdoor Call Panel; Call Panel Mounting Plate
4x 200mm 10 Pin Connector
1x Rain Cover
1x 8 ports Switch(with POE)
