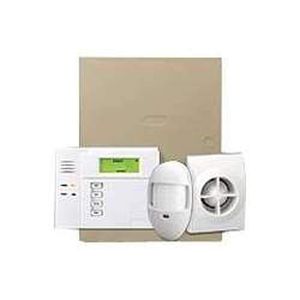

Vista 20P Kit Bundle with 6150 Keypad, WAVE2, IS335 PIR, 3 7939WGWH Contacts

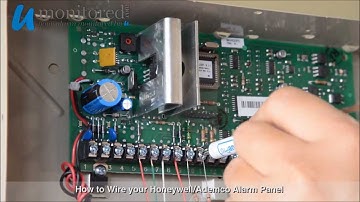

this is how you wire in your Honeywell ademco alarm panel we'll begin with our keypad will place the positive wire into terminal 5 the green wire into terminal 6 and the white wire into terminal 7 we'll leave our ground wire free next we'll install our siren red wire into terminal 3 and we'll leave the black wire free onto zone 1 we'll put our positive wire into terminal 8 and a resistor end wire into terminal 9 moving on to zone 2 we will place our resistor and wire into terminal 10 and our positive end wire into terminal 11 shown here we're adding a resistor to our zone 3 which is our motion detector on to the green wire now will we connect our white wire into terminal 12 for zone 3 followed by the resistor and wire into terminal 13 now we're going to bundle all of our common ground wires and power wires together and place them into ports four and five next as you can see we have doub
