Features:

♦ Digital system, use CAT5 network cable

♦ Monitor nobody receive call within 30s, the call will transfer to smart phone; or visitor leave a message for 40s transfer to smart phone

♦ Duplex communication

♦ Same flat or different flat support monitor call monitor

♦ PC port work as administrate machine, call for any monitor

♦ 8 smart home security zone

♦ Machine to machine use TCP/IP protocol, machine to smart phone use SIP protocol

♦ Support setting un-lock time, suitable for different electronic lock

♦ Max. support 3 smart phone to unlock the door account (never miss your call)

♦ Special design rubber for waterproof

♦RFID card&code access

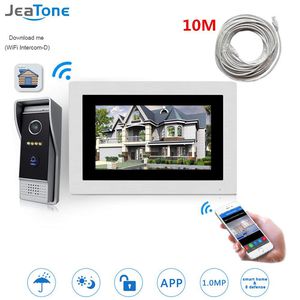

Descriptions: Indoor Monitor:7" TFT touch screen

Resolution:1024(H)*3(RGB)*600(V)

Leave Message Time:30s/60s/90s optional

Conversation Duration:Max.180s

Power Consumption:400mA Max.

Power Supply: External Power DC 12V

Memory: Support Max.32GB SD card

Material: Wire drawing aluminum case

Operation Temp:-40℃ +50℃

Outdoor Camera:

Camera Sensor:1.0MP

View Angle:110º Wide Angle Lens

LEDs For Night Vision: 6 pcs LED

Power Consumption:200mA Max.

Dimension:128mm*48mm*49mm

Material:Aluminium alloy

Power Consumption:200mA Max.

Package Included:

1x Indoor Monitor;Monitor Mounting Plate

1x Power Adapter

1x 200mm 4 Pin Connector

1x Outdoor Call Panel; Call Panel Mounting Plate

1x 200mm 2 Pin Connector

1x Rain Cover

1x 4 Ports Switch

Notes:NO POE Function!
