Description
SDI switcher is designed to switch two SDI sources to one SDI monitor or display. For optimum performance, the SDI switcher is loaded with re-clocking technology to drive the signal at longer distances and supports SDI, HD-SDI and 3G-SDI signals. Ideally used with SDI based HDCCTV surveillance systems, rental & staging facilities, post-production, TV studio, digital cinema, or other A/V applications where you need to switch and split from an SDI camera or other device equipped with 3G/HD/SD-SDI outputs to one SDI-compliant display or video processor.
Specification:
Input connector: 2 x SDI BNC Male
Output connector: 1 x SDI BNC Male
Supported cable length(BELDEN 1694A)
3G mode: up to 330 ft. HD mode: up to 660 ft. SD mode: up to 1320ft.
Support multiple video resolution: SD 525i and 625i; HD 720p at 24, 25, 30, 50 and 60 Hz; HD 1080i at 50, 60 Hz; HD 1080p at 24, 25, 30, 50 and 60 Hz.
Support multiple color space:RGB or YCbCr 4:4:4 sampled; YCbCr 4:2:2 or 4:2:0 sampled; Support wide range of data rates: 270Mbps ~ 2.97Gbps.
Support multiple deep color: 8bit, 10bit, 12bit.
Package Contents:
Main Unit*1
US power adapter*1
User Manual*1
Specification:
Input connector: 2 x SDI BNC Male
Output connector: 1 x SDI BNC Male
Supported cable length(BELDEN 1694A)
3G mode: up to 330 ft. HD mode: up to 660 ft. SD mode: up to 1320ft.
Support multiple video resolution: SD 525i and 625i; HD 720p at 24, 25, 30, 50 and 60 Hz; HD 1080i at 50, 60 Hz; HD 1080p at 24, 25, 30, 50 and 60 Hz.
Support multiple color space:RGB or YCbCr 4:4:4 sampled; YCbCr 4:2:2 or 4:2:0 sampled; Support wide range of data rates: 270Mbps ~ 2.97Gbps.
Support multiple deep color: 8bit, 10bit, 12bit.
Package Contents:
Main Unit*1
US power adapter*1
User Manual*1

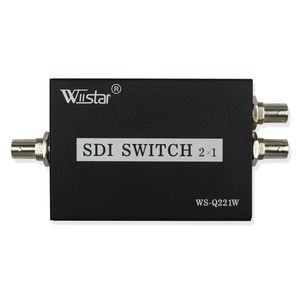

2x1 3Gb/s SDI Switcher with ReClock Technology, Supports SDI, HD-SDI and 3G-SDI Signals (WS-SDI2X1)
Price is below average
Current Price
$29.99
Average
$36.49
Min Price
$29.99
Max Price
$49.99
Price dynamics
18%
Description
SDI switcher is designed to switch two SDI sources to one SDI monitor or display. For optimum performance, the SDI switcher is loaded with re-clocking technology to drive the signal at longer distances and supports SDI, HD-SDI and 3G-SDI signals. Ideally used with SDI based HDCCTV surveillance systems, rental & staging facilities, post-production, TV studio, digital cinema, or other A/V applications where you need to switch and split from an SDI camera or other device equipped with 3G/HD/SD-SDI outputs to one SDI-compliant display or video processor.
Specification:
Input connector: 2 x SDI BNC Male
Output connector: 1 x SDI BNC Male
Supported cable length(BELDEN 1694A)
3G mode: up to 330 ft. HD mode: up to 660 ft. SD mode: up to 1320ft.
Support multiple video resolution: SD 525i and 625i; HD 720p at 24, 25, 30, 50 and 60 Hz; HD 1080i at 50, 60 Hz; HD 1080p at 24, 25, 30, 50 and 60 Hz.
Support multiple color space:RGB or YCbCr 4:4:4 sampled; YCbCr 4:2:2 or 4:2:0 sampled; Support wide range of data rates: 270Mbps ~ 2.97Gbps.
Support multiple deep color: 8bit, 10bit, 12bit.
Package Contents:
Main Unit*1
US power adapter*1
User Manual*1
Specification:
Input connector: 2 x SDI BNC Male
Output connector: 1 x SDI BNC Male
Supported cable length(BELDEN 1694A)
3G mode: up to 330 ft. HD mode: up to 660 ft. SD mode: up to 1320ft.
Support multiple video resolution: SD 525i and 625i; HD 720p at 24, 25, 30, 50 and 60 Hz; HD 1080i at 50, 60 Hz; HD 1080p at 24, 25, 30, 50 and 60 Hz.
Support multiple color space:RGB or YCbCr 4:4:4 sampled; YCbCr 4:2:2 or 4:2:0 sampled; Support wide range of data rates: 270Mbps ~ 2.97Gbps.
Support multiple deep color: 8bit, 10bit, 12bit.
Package Contents:
Main Unit*1
US power adapter*1
User Manual*1
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
