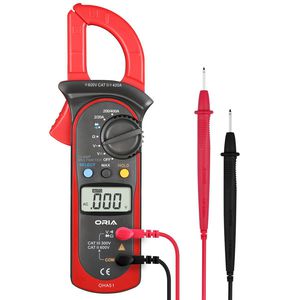

TheORIA Digital Handheld Clamp multimeter accurately measures AC/DC voltage,current, resistance, diode, continuity
andson on. Built with the clear LCD. The data hold function helps read the displayafter measurement.
Dimensions：208mm*76mm*30mm/8.2*3.0*1.2 inches
Max. display: 1999, 3 1/2digits
Overload display: "OL"or "-OL" is displayed
Measurement Speed: Updated3times per second
Drop Test: 1 meter droptest passed
Max. JAW Size: 28 mmdiameter
Project Max. Currentconductor size: 26 mm
Low Battery Indication
Power: 2pcs of 1.5VBattery (AAA) Included
Diode Test: Yes
Continuity Test: Yes
Package Included:
1x Digital LCD Clamp Multimeter
2x Test Leads
1x User Manual
2x AAA Battery
1x Belt
Notes:
l Before using the Meter inspect the case. Do not use the Meter if itis damaged or the case (or part of the case ) is removed.
l Inspect the test leads for damaged insulation or exposed metal.Check the test leads for continuity.
l Do not carry out the measurement when the Meter's back case andbattery compartment are not closed to avoid electric shock.
l This Operating Manual covers information on safetyand cautions. Please read the relevant information carefully and observe all the Warnings and Notes strictly.
l To avoid electric shock or personal injury, read the "Safety Information" and "RulesforSafe Operation" carefully before using the Meter.
