Description

Specifications
Safety/Compliances: IEC61010 CAT. II 600V over voltage and double insulation
Display: 2.2 inch LCD display; Maximum display 1999
Range selection: Auto ranging
Overload protection: resistance measurement with PTC to protect circuit
Dimensions: 147mm*71mm*45mm (L*W*H)
Battery test: ✔
AC/DC Current test: ✔
AC/DC Voltage test: ✔
Resistance test: ✔
Diode test: ✔
Continuity test: ✔
NCV: ✔
Data Hold: ✔
LCD Backlight: ✔
Flashlight: ✔
Auto Power 0ff: ✔
Continuity Buzzer: ✔

Battery Test:
- 1.5V Battery: Resolution: 0.001V; Built-in load: 1.8KΩ
- 6V Battery: Resolution: 0.01V; Built-in load: 150Ω
- 12V Battery: Resolution: 0.01V; Built-in load: 62Ω

DC Voltage:
- Range and Accuracy: 200mV ± (0.5%+2); 2/20/200V ± (0.5%+2); 600V ± (0.8%+2)
- Input Impedance: 10 MΩ
- Overload Protection: 600V DC (RMS)
AC Voltage (50Hz - 400Hz):
- Range and Accuracy: 2/20/200V ± (1%+3), 600V± (1.2%+3)
- Input Impedance: 10 MΩ
- Response impedance: Average (sine wave RMS)
- Overload Protection: 600V AC (RMS)
Resistance:
- Range and Accuracy: 200Ω ± (0.8%+2); 2/20/200KΩ ± (0.8%+2); 2MΩ ± (0.8%+2), 20MΩ ± (1%+2)

DC Current :
- Range and Accuracy: 200/2000μA ± (1.5%+3); 20/200mA ± (1.5%+3), 10A ± (2.0%+5)

AC Current (50Hz - 400Hz):
- Range and Accuracy: 200/2000μA ± (1.5%+4); 20/200mA ± (1.5%+4), 10A ± (2.5%+5)
- Overload Protection: μA/mA Range: F250mA (Fast blows), 10A Range: F10A Fuse (Fast blows).
- Maximum Input Current: mA jack: 250mA, 10A jack: 10A

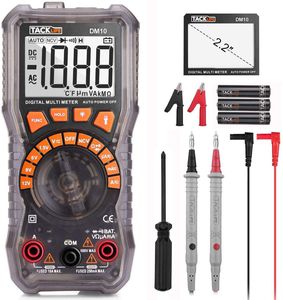

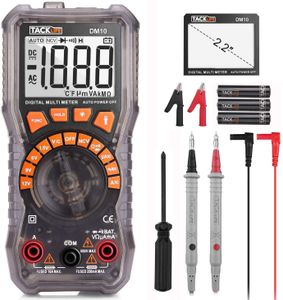

Package Includes
1x Tacklife DM10 Digital Multimeter
1x Screwdriver
3x 1.5V AAA Batteries
1x User's Manual
1x Test Leads with Alligator clip (Pair)
1x 24-month Service Card

Multimeter, DM10 Electrical Tester 2000 Counts Auto-Ranging Amp Volt Ohm Meter Diode and Continuity Tester Voltage Detector with LCD Display and Backlight

Price is below average

Current Price

$19.97

Average

$21.68

Min Price

$16.97

Max Price

$25.99

Price dynamics

8%
