Description

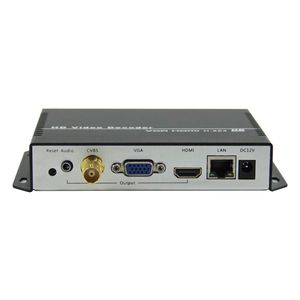

ISEEVY H.265 H.264 HDMI VGA CVBS Decoder is our professional HD audio & video decoding device. It s for decoding network video&audio stream to HDMI/VGA/CVBS(with stereo audio) local display output . It can receive the RTMP RTSP UDP HTTP HLS FLV stream from our HDMI/VGA/SDI encoder or the media server.
Specifications
Video
Video Decoding Compression
Support H.265/H.264 video compression format
Video/Audio input interface
Ethernet Port(RJ45)
Video Input Streaming Resolution
3840*2160@30P, 1920x1080@60P/50P,1920x1080@60i/50i,1280x720@60p/50p,720x576,720x480
Video Output Interface
1* HDMI/VGA/CVBS
Video Output Resolution
3840*2160@30P, 1920x1080@60P/50p,1920x1080@60i/50i,1280x720@60p/50p,720x576, 720x480
Streaming Protocol Support
HTTP, UDP, RTSP, RTMP, HLS, FLV
Video Pre-processing
De-interlacing, noise reducing & sharpening
Audio
Audio Decoding
AAC, AAC+, MP3
Sampling Rate
Auto
Bit Rate Option
32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K
Sampling Accuracy
24 Bit
Audio Data Rate
64kbs to 384kbs
Audio Output
1* HDMI, 1* RCA stereo
Others
RJ45
1000M network interface
Control Panel
Web
Dimension(W*L*H)
137mm*105mm*28mm
Net Weight
0.25kg
Temperature
0~45℃(work),-20~80℃(storage)
Power
DC12V 1A
Consumption
<5W
Specifications
Video
Video Decoding Compression
Support H.265/H.264 video compression format
Video/Audio input interface
Ethernet Port(RJ45)
Video Input Streaming Resolution
3840*2160@30P, 1920x1080@60P/50P,1920x1080@60i/50i,1280x720@60p/50p,720x576,720x480
Video Output Interface
1* HDMI/VGA/CVBS
Video Output Resolution
3840*2160@30P, 1920x1080@60P/50p,1920x1080@60i/50i,1280x720@60p/50p,720x576, 720x480
Streaming Protocol Support
HTTP, UDP, RTSP, RTMP, HLS, FLV
Video Pre-processing
De-interlacing, noise reducing & sharpening
Audio
Audio Decoding
AAC, AAC+, MP3
Sampling Rate
Auto
Bit Rate Option
32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K
Sampling Accuracy
24 Bit
Audio Data Rate
64kbs to 384kbs
Audio Output
1* HDMI, 1* RCA stereo
Others
RJ45
1000M network interface
Control Panel
Web
Dimension(W*L*H)
137mm*105mm*28mm
Net Weight
0.25kg
Temperature
0~45℃(work),-20~80℃(storage)
Power
DC12V 1A
Consumption
<5W
ISEEVY H.265 H.264 4K 1080P Video Decoder with HDMI VGA CVBS Output for Advertisement Display, IP Encoder Decoding, Network Stream Decoding support RTMP RTSP RTP UDP HTTP
