Description
Descriptions:
Play your favorite retro games using this adapter by connecting your console to one of the OSSC's inputs. The adapter will then output the signal to HDMI for connection on a modern TV with no input lag. For v1.6, it converts not only VGA, SCART and Component to DVI/HDMI, but also analogue audio to digital DVI/HDMI now! The OSSC features multiple options and modes for tweaking the image until you are happy - A variety of templates to get the best image for each console are widely available online!
Input: 1 X SCART - Supports RGBs (clean csync, cvideo sync, luma sync), RGsB, Ypbpr 1 X Component video - Supports Ypbpr and RGsB signals
1 X D-SUB15 (VGA) - Supports RGBHV, RGBs, RGsB, Ypbpr
2 x 3.5mm analogue audio - Supports all analogue audio. Input 1 can be toggled between output (from AV1/SCART) or input
Composite video and S-Video are NOT supported and require an adapter/transcoder (NOT incl.)
Output:
1 X HDMI or DVI-D (w/ adapter) (digital only, incl.audio). Full-range 24-bit RGB output through DVI/HDMI
1 X Analogue audio 3.5mm (input/output toggle)
Supported input resolutions:
240p/288p/480i/576i 15khz
25Khz medium-res modes
480p/576p/720p/1080i 31khz
Supported output resolutions:
240p/288p -> 480p/576p or 720p line triple (compatible displays only)
240p/288p -> 1280×960, 1280×1152, 1080p, 1600×1200 line quadruple/quintuple (compatible displays only)
25Khz medium-res modes -> 480p
480i/576i -> 480p/576p or pass-through
480p -> pass-through or 960p line-double (compatible displays only)
all other 31khz resolutions passed through
Other Features:
Back lit LCD
SD Card socket for firmware updates
JTAG connector
IR receiver
Power requirements: DC 5V 1 Amp - 2.1 x 5.5mm positive tip
Play your favorite retro games using this adapter by connecting your console to one of the OSSC's inputs. The adapter will then output the signal to HDMI for connection on a modern TV with no input lag. For v1.6, it converts not only VGA, SCART and Component to DVI/HDMI, but also analogue audio to digital DVI/HDMI now! The OSSC features multiple options and modes for tweaking the image until you are happy - A variety of templates to get the best image for each console are widely available online!
Input: 1 X SCART - Supports RGBs (clean csync, cvideo sync, luma sync), RGsB, Ypbpr 1 X Component video - Supports Ypbpr and RGsB signals
1 X D-SUB15 (VGA) - Supports RGBHV, RGBs, RGsB, Ypbpr
2 x 3.5mm analogue audio - Supports all analogue audio. Input 1 can be toggled between output (from AV1/SCART) or input
Composite video and S-Video are NOT supported and require an adapter/transcoder (NOT incl.)
Output:
1 X HDMI or DVI-D (w/ adapter) (digital only, incl.audio). Full-range 24-bit RGB output through DVI/HDMI
1 X Analogue audio 3.5mm (input/output toggle)
Supported input resolutions:
240p/288p/480i/576i 15khz
25Khz medium-res modes
480p/576p/720p/1080i 31khz
Supported output resolutions:
240p/288p -> 480p/576p or 720p line triple (compatible displays only)
240p/288p -> 1280×960, 1280×1152, 1080p, 1600×1200 line quadruple/quintuple (compatible displays only)
25Khz medium-res modes -> 480p
480i/576i -> 480p/576p or pass-through
480p -> pass-through or 960p line-double (compatible displays only)
all other 31khz resolutions passed through
Other Features:
Back lit LCD
SD Card socket for firmware updates
JTAG connector
IR receiver
Power requirements: DC 5V 1 Amp - 2.1 x 5.5mm positive tip

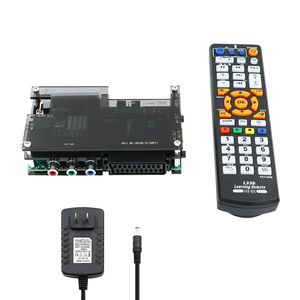

Mcbazel OSSC SCART Component VGA to HDMI Open Source Scan Converter v1.6 for Retro Gaming Saturn SNES PS1 Console US Plug
Current Price
$179.99
Average
$176.99
Min Price
$170.99
Max Price
$179.99
Price dynamics
2%
Description
Descriptions:
Play your favorite retro games using this adapter by connecting your console to one of the OSSC's inputs. The adapter will then output the signal to HDMI for connection on a modern TV with no input lag. For v1.6, it converts not only VGA, SCART and Component to DVI/HDMI, but also analogue audio to digital DVI/HDMI now! The OSSC features multiple options and modes for tweaking the image until you are happy - A variety of templates to get the best image for each console are widely available online!
Input: 1 X SCART - Supports RGBs (clean csync, cvideo sync, luma sync), RGsB, Ypbpr 1 X Component video - Supports Ypbpr and RGsB signals
1 X D-SUB15 (VGA) - Supports RGBHV, RGBs, RGsB, Ypbpr
2 x 3.5mm analogue audio - Supports all analogue audio. Input 1 can be toggled between output (from AV1/SCART) or input
Composite video and S-Video are NOT supported and require an adapter/transcoder (NOT incl.)
Output:
1 X HDMI or DVI-D (w/ adapter) (digital only, incl.audio). Full-range 24-bit RGB output through DVI/HDMI
1 X Analogue audio 3.5mm (input/output toggle)
Supported input resolutions:
240p/288p/480i/576i 15khz
25Khz medium-res modes
480p/576p/720p/1080i 31khz
Supported output resolutions:
240p/288p -> 480p/576p or 720p line triple (compatible displays only)
240p/288p -> 1280×960, 1280×1152, 1080p, 1600×1200 line quadruple/quintuple (compatible displays only)
25Khz medium-res modes -> 480p
480i/576i -> 480p/576p or pass-through
480p -> pass-through or 960p line-double (compatible displays only)
all other 31khz resolutions passed through
Other Features:
Back lit LCD
SD Card socket for firmware updates
JTAG connector
IR receiver
Power requirements: DC 5V 1 Amp - 2.1 x 5.5mm positive tip
Play your favorite retro games using this adapter by connecting your console to one of the OSSC's inputs. The adapter will then output the signal to HDMI for connection on a modern TV with no input lag. For v1.6, it converts not only VGA, SCART and Component to DVI/HDMI, but also analogue audio to digital DVI/HDMI now! The OSSC features multiple options and modes for tweaking the image until you are happy - A variety of templates to get the best image for each console are widely available online!
Input: 1 X SCART - Supports RGBs (clean csync, cvideo sync, luma sync), RGsB, Ypbpr 1 X Component video - Supports Ypbpr and RGsB signals
1 X D-SUB15 (VGA) - Supports RGBHV, RGBs, RGsB, Ypbpr
2 x 3.5mm analogue audio - Supports all analogue audio. Input 1 can be toggled between output (from AV1/SCART) or input
Composite video and S-Video are NOT supported and require an adapter/transcoder (NOT incl.)
Output:
1 X HDMI or DVI-D (w/ adapter) (digital only, incl.audio). Full-range 24-bit RGB output through DVI/HDMI
1 X Analogue audio 3.5mm (input/output toggle)
Supported input resolutions:
240p/288p/480i/576i 15khz
25Khz medium-res modes
480p/576p/720p/1080i 31khz
Supported output resolutions:
240p/288p -> 480p/576p or 720p line triple (compatible displays only)
240p/288p -> 1280×960, 1280×1152, 1080p, 1600×1200 line quadruple/quintuple (compatible displays only)
25Khz medium-res modes -> 480p
480i/576i -> 480p/576p or pass-through
480p -> pass-through or 960p line-double (compatible displays only)
all other 31khz resolutions passed through
Other Features:
Back lit LCD
SD Card socket for firmware updates
JTAG connector
IR receiver
Power requirements: DC 5V 1 Amp - 2.1 x 5.5mm positive tip
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
- [Anthony] So here's the deal, you've got a retro game collection, you've got a Super Nintendo,
you've got a tower of power, but you also got like an
LCD TV and you've got, I don't know, a capture
device that only takes HTMI. This is all you're gonna
get out of these things, by default, at least in North America. What do you do? You can get HD retro vision cables for like the Super Nintendo, but then you gotta make sure
that your TV is compatible with it 'cause it only
outputs 240p, it's a mess. And that is why this exists, this is the OSSC Open
Source Scan Converter. Basically, what it does is it takes component, VGA and this big chunker right here, that many people in North America
probably won't be familiar with called Scart. It's a rather large connector that can carry composite video RGB, which is kind of
like VGA, but not really. It's a little bit different. Basically. It was lik


Similar products
