Features:
Collinear Load Test 280kgx2 / 600lbx2
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
LED Indicates the door Status
MOV Provides Reverse Current Protection
Anti-Residual Magnetism Designed
High Strength Material,Anodized Aluminum Housing
Design without Mechanical Failure
Increase the holding Force,Dual Insulative Housing
UL listed with the US and Canada
Specifications:
Size: 500Lx48.5Wx25H(mm) / 19.69Lx1.91Wx0.98H(in)
Armature Plate Dimension: 180Lx38Wx11H(mm) / 7.09Lx1.5Wx0.43H(in)
Holding Force: 280kgx2 / 600Lbsx2
Input Voltage: 12 or 24VDC
Current Draw: 12V/500mAx2 or 24V/250mAx2
Suitable: Wooden door,Glass door,Metal door,Fireproof door
Surface Temp: Less thand +20℃ / 68℉
Operating Temp: -10℃~+55℃(14℉~131℉)
Humidity: 0~90%(non-condensing)
Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
LED: Red shows locked ;Green shows unlocked
Signal Output: Lock signal(NO/NC/COM)
Weight: 4.2KG / 9.26lb
Package:

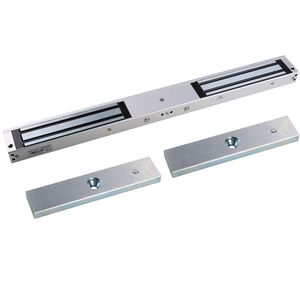

1 x Electric Magnetic Lock
1 x User manual
1 x Installation Kit
Warm Tip:
Armature Plate installed too tight will lead to result the lock weak foce, recommend loosen the Armature Plate screws a little in this case.
