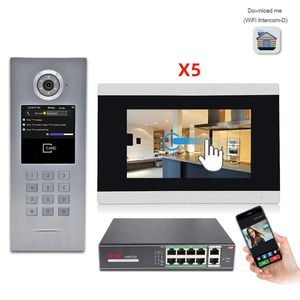

Size :5 Monitors 1 Camera

Notes: Both The Indoor Monitor And The Doorbell Can be Powered By The Switch,With POE Function.

Features:
♦ Support iOS & Android smart phone
♦ Device to device in TCP/IP protocol, device to smart phone in SIP protocol
♦ Digital system, CAT5 Network cable connection
♦ Duplex communication
♦ Support intercom between monitors
♦Support seting un-lock time, suitable for different electronic lock
♦Monitor nobody receive call within 30S, the call will transfer to smart phone; Or visitor leave a message for 40S transfer to smart phone
♦ The call will transfer to smart phone if no one answer the call within 30s from monitor
♦Max.support 32G SD card, and leave message max.45s
♦ 8 security zones alarm (support connecting smoke detector...etc)
♦Max support 3 smart phone to unlock the door account (Never miss your call)

Descriptions:
Indoor Monitor:
Monitor:7" TFT touch screen
Resolution:1024(H)*3(RGB)*600(V)
Leave Message Time:30s/60s/90s optional
Power Consumption:400mA Max.
Power Supply: External Power DC 12V
Operation Temp:-40℃ +50℃

Outdoor Call Panel:
Screen:4.3 inch
Camera Sensor:1.0MP
View Angle:120º Wide Angle Lens
LEDs For Night Vision: 6 pcs LED
Power Consumption:200mA Max.
Dimension:366mm*140mm*41mm
Material:Aluminium alloy
Power Consumption:200mA Max.
Waterproof Rate:IP53
Power Consumption:200mA Max.

Package Included:
5x Indoor Monitor;Monitor Mounting Plate
5x Power Adapter
15x 200mm 3 Pin Connector
2x Guarantee Card
2x English User Manual
1x Outdoor Call Panel; Call Panel Mounting Plate
5x 200mm 4 Pin Connector
2x Qualified Certificate
1x 8 Ports Switch（with POE)
