Features:
It can directly drive two DC motors and the motor output using eight-speed Schottky diodes as protection.
The driver focus on current and efficiency, effectively motor power and battery life.
Can withstand high current overload, the maximum current up to 30A.
The driver can operate at 0% -99% of the duty cycle of the PWM modulation, the motor driving voltage can be obtained sufficiently.
MOSFET driver chip comes with hardware brake function and power feedback.

Descriptions:
The drive uses the full two half-bridge driver chip + low resistance N-channel MOSFET components.
Protection function: overvoltage, overcurrent, short circuit protection all have.
Made of superior material, it worth you to buy it.

Specifications:
Motor forward: DIR = 1 PWM = PWM
Motor reversal: DIR = 0 PWM = PWM
Parking brake: DIR = X PWM = 0 (X is an arbitrary state)
POWER connected to the positive power supply, GND power supply is negative. Two motors were connected MOTOR1, MOTOR2
Rated voltage: 3v-36v (can be customized according to the user)
Rated Current: 15A
Peak current: 30A
Dimensions: 107*60*20mm

Package including:

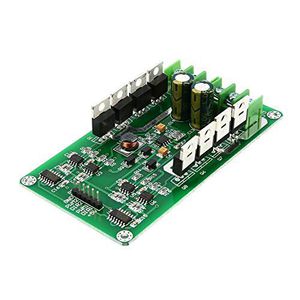

1 x Motor driver board(not include the Terminals and Screws)

Please Notes:
1.Please allow slight dimension difference due to different manual measurement.
2.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
