Description
Physical Characteristics
- Conductor: Stranded Bare Copper
- Number of Conductors: 4
- Size: 22 AWG
- Insulation: Premium Polyolefin (Flame-Retardant & RoHS Compliant)
- Conductor Color Code: 1. Black 2. Red 3. White 4. Green
- Rip Cord: Applied longitudinally under jacket
- Jacket: PVC (Flame-Retardant, Sun Res & RoHS Compliant)
- Nominal Cable Diameter (in): 0.126
- Nominal Cable Net Weight (lbs/1000 ft): 15.87
- Minimum Bend Radius (in): 3.0
- Maximum Pulling Force (lbs): 35
- Temperature Rating (°F): Installation: +32 to +140 Storage & Operation: -4 to +167
- ISO9001: 2008, ISO14001: 2004, OHSAS 18001
- NEC: 725 & 800
- UL Standard: UL 13 & UL 444
- Flame Rating: UL 1666 Riser, C(UL) FT4
- RoHS: Compliant Directive 2011/65/EU
- Operating Voltage: 300 Volts Max
- Capacitance: 15pF/ft Nom
- Impedance: 100 Ohms Nom
- DC Resistance: 16.6 Ohms/M' @ +68 °F

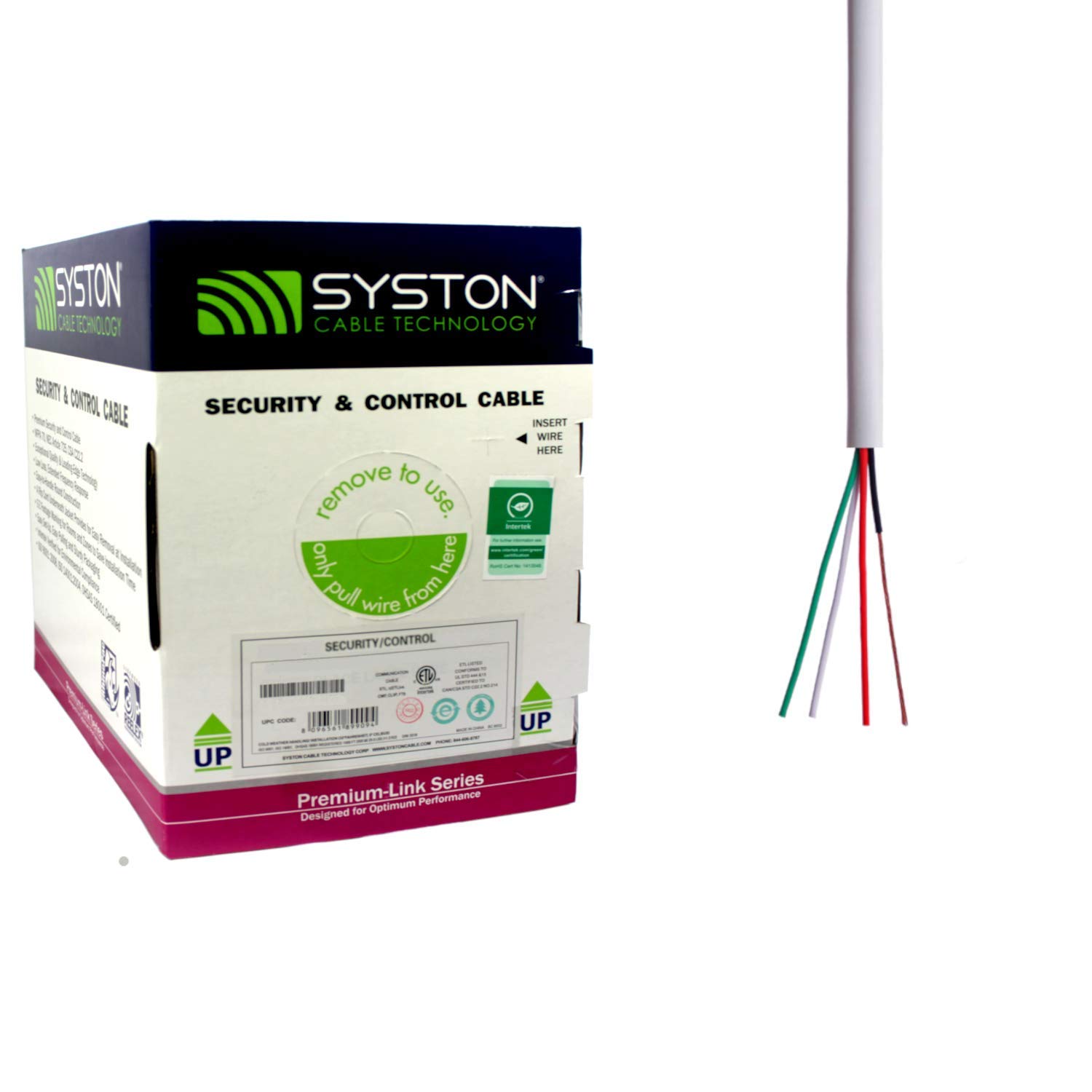

22 AWG 4 Conductor Security Control Cable 1000ft, Stranded Pure Copper Low Voltage 300V, CL3R/CMR Outdoor/Indoor Sun Resistant Jacket for Low Voltage Circuit Systems, White by Syston Cable
Price is below average
Current Price
$72
Average
$72.19
Min Price
$66
Max Price
$83.98
Price dynamics
0%
Description
Physical Characteristics
- Conductor: Stranded Bare Copper
- Number of Conductors: 4
- Size: 22 AWG
- Insulation: Premium Polyolefin (Flame-Retardant & RoHS Compliant)
- Conductor Color Code: 1. Black 2. Red 3. White 4. Green
- Rip Cord: Applied longitudinally under jacket
- Jacket: PVC (Flame-Retardant, Sun Res & RoHS Compliant)
- Nominal Cable Diameter (in): 0.126
- Nominal Cable Net Weight (lbs/1000 ft): 15.87
- Minimum Bend Radius (in): 3.0
- Maximum Pulling Force (lbs): 35
- Temperature Rating (°F): Installation: +32 to +140 Storage & Operation: -4 to +167
- ISO9001: 2008, ISO14001: 2004, OHSAS 18001
- NEC: 725 & 800
- UL Standard: UL 13 & UL 444
- Flame Rating: UL 1666 Riser, C(UL) FT4
- RoHS: Compliant Directive 2011/65/EU
- Operating Voltage: 300 Volts Max
- Capacitance: 15pF/ft Nom
- Impedance: 100 Ohms Nom
- DC Resistance: 16.6 Ohms/M' @ +68 °F
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
