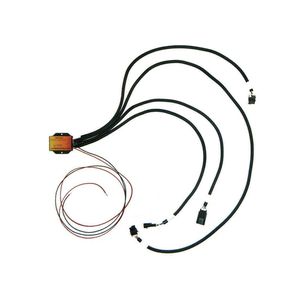

L460065397 LINGENFELTER 58X-24X Crank Sensor Trigger Conversion Module

this is the lingenfelter trigger conversion module or more commonly known as a TRG this box will allow you to put a 58 X engine into a vehicle that was originally equipped with a 24 X it will not allow you to go the other way so you can't use it to put a 24 X engine into a vehicle that was equipped with a 58 X so it will allow you to put like an ls3 or an ls7 into like a 2001 c5 Corvette the Fox has plug-and-play harnesses built into it so the crank out in the cam out will just plug into your engine harness side and then the cam in and crank in will just plug into the sensors the cam sensor side make sure that you plug the the connector straight into the sensor itself the engine will originally have a jumper harness there on the timing cover just make sure you remove that and plug it straight into the sensor if you swap the camshaft out on the engine make sure that you're running at 4 X
