Capstan Belt for Tascam 488

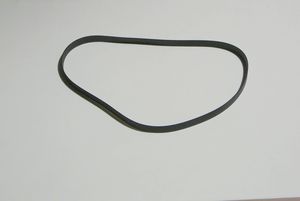

let's change the capstan belt on the cassette transport module of a task I'm 488 mark - you're not sure how to remove this from your 4:8 a check my other videos I demonstrate opening the case in removing this extra capstan motor there the capstan bail runs from a pulley the top of that more rendus flywheel here goes turning your a capstan in order to get access to this old belt or if you're opening one where the belt snap or become loose thing you're gonna want to remove one two three screws it's the screws that are in recesses in this plate that you want to remove to remove these two that's attaching this plate here to the plate in which all these components are mended you could remove that cable tie or gather I would just leave it from app to read the wires I'm using a fairly small cross head screwdriver keep your screws somewhere safe well just come off like that so the belt that goe
