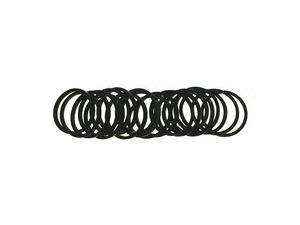

Replacement Belt for CD/DVD/BD Players/Square Belt/Two Folds Length 30mm /Width 1mm /20 Pcs Set

[Music] hi I'm Vance and welcome to spec cents over the last 100 years v-belts have been widely used in household appliances commercial HVAC systems compressors and industrial machines they are easy to install and don't require any lubrication the most common types are the classical v-belts fractional horsepower belts and to narrow or deep wedge belts each type uses a different belt code to describe the length and size and each size is rated for different loads so overall it's important to find an exact match in this episode we'll first learn how to measure a V belt and then we'll use the belt codes to find a replacement to find a match first measure the top width next measure the depth these two measurements can be used to match the belt type and size now make a mark on the belt to help measure the length if you have a tape-measure it can be wrapped around the belt to get the outside c
