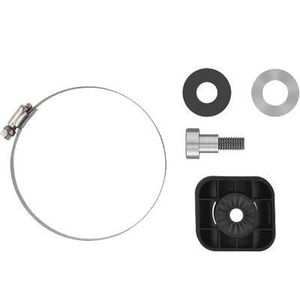

Garmin 0101278400 Trolling Motor Barrel Mount, for LVS32

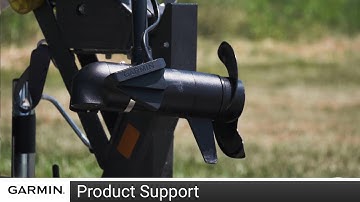

today we will show you how to mount your Garmin Panoptix live scope LVS 32 to the barrel of your trolling motor before you begin you will need the map provided in the box the transducer the mounting screw with washers and the provided allen key for direct access to your boat make sure it is out of the water if your trolling motor has a rotating joint on the shaft we will need to separate the transducer cables to do this we will hold the transducer near the barrel and its planned mounting location and mark the cable where it crosses the rotating joint once we have marked where to separate the cables lay the transducer cable on a hard flat surface press the tip of the included cutting tool a flathead screwdriver or a blunt knife to the center of the cables at your marked location and puncture the material between the cables make sure you do not cut through or into the round section of the
