Description

Gateway for Volvo Penta, BRP Rotax and J1939 engines to NMEA 2000 marine electronics networks. It will provides you with engine revolutions, motor hours, coolant temperature, battery voltage, warning and alarms, fuel rate and other data on the screen of your chart plotter. The Engine Gateway is compatible with BRP Rotax, J1939 engines (Caterpillar, etc.) and most Volvo Penta engines manufactured since 2004, and even with some engines manufactured before 2000. Compatible Volvo Penta engines: - with all versions of EVC-B, EVC-C, EVC-D, EVC-E (most modern engines manufactured since 2006); - D1 and D2 series with MDI (Mechanical Diesel Interface), for example D2-40F; - EDC III and EDC IV diesel engines (EMS 2.0, EMS 2.2); - with EVC-A MC (see customer's video with D3-160A-A) and EVC-A EC (also known as EVCmc and EVCec); - EFI engines with MEFI4B ECU or later (gasoline, 2004-2005), with or without an EVC system installed; - all EGC engines (gasoline, 2005 and Later), with or without an EVC system installed. On most vessels with Volvo Penta engines, all that you need is to plug the device into an empty socket of the NMEA 2000 network backbone and connect the engine cable to a Multilink hub or, using the built-in Y-connector on the engine cable of Gateway, to connect it in series with any of the EVC tachometers. For some engines (please see section IV of manual for details) an adaptor cable is required, and we offer different adaptor cables for a reasonable price (available in the accessories section of the ordering page). Factory settings are suitable for most of vessels with one or two engines. In case of two or more engines, one Gateway is enough if they are joined to a single network. The Gateway is equipped with a MicroSD card slot intended for firmware updates.

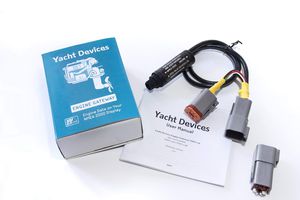

Yacht Devices Boat Engine Gateway YDEG-04 for Volvo Penta, BRP Rotax and J1939 Engines to NMEA 2000 Marine Electronics Networks (Raymarine SeaTalk NG Compatible)

Price is below average

Get price

Current Price

$198.98

Average

$205.31

Min Price

$180.77

Max Price

$229.19

Price dynamics

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

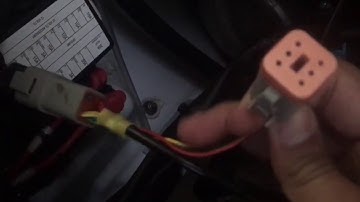

can we give you a bit of an overview of the setup to connect the engine to multifunction display in this case the garment season you can see there's not a lot of room in the town where to put a GPS or fish finder or any any exits or you may want to attend the factory - is pretty simple tech ometer and so only now if you really want to add a GPS or a fish finder there's not a lot of options here in this small helm so what I've done is come back here in the engine obviously when you are when you oughta set up like this you're blocking out the engine gauges so it was important try to set the multifunction display to be to be able to show the engine rpm temperature and everything else that's behind the dashboard and that's what we're trying to do here so we're you know any meet a 2000 installation which was done just for the multifunction display and over here - for tech engines they have t
