Description
66W dual output AC/DC enclosed switching power supply 5 Volts 6 Amps (channel 1) 12 Volts 3 Amps (channel 2) specifications max. Power rating: 66W efficiency: 79 percent size (L x W x H) (inches): 5.1 x 3.9 x 1.5 ripple and noise (mV p-p): 80 load regulation: 0.5 percent line regulation: 0.5 percent input: 88-264vac 47-63hz 5G vibration able to withstand 300VAC surge input for 5 seconds short-circuit/overload/overvoltage protection 3-year warranty certifications: UL/cul/TUV/CE/CB for more 12 Volt power supplies. Detailed specifications: primary output voltage (VDC): 5 output current (a): 6 maximum output power (W): 66 family: supplier specialized-65 additional output voltages (VDC): 12 input voltage (VAC): 88 to 264 input frequency: 47 to 63 maximum input current (a): 2 output connector Type: screw terminal block number of outputs: 2 product Type: AC to DC power supply efficiency ( percent ): 79 minimum isolation voltage: 3000V operating temperature-min (CEL): -25 operating temperature-max (CEL): 70 Length (inch): 5.1 width (inch): 3.9 height (inch): 1.5 agency approvals: UL/cul/TUV/CE/CB Type: auto switching style: multiple output.

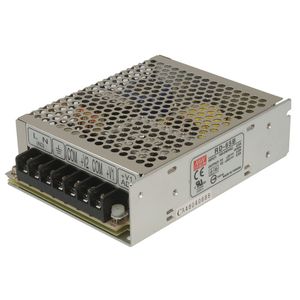

MEAN WELL RD-65A Dual Output Enclosed Power Supply 5V 8 Amp and 12V
Price is below average
Current Price
$16.95
Average
$20.09
Min Price
$15.49
Max Price
$32
Price dynamics
16%
Description
66W dual output AC/DC enclosed switching power supply 5 Volts 6 Amps (channel 1) 12 Volts 3 Amps (channel 2) specifications max. Power rating: 66W efficiency: 79 percent size (L x W x H) (inches): 5.1 x 3.9 x 1.5 ripple and noise (mV p-p): 80 load regulation: 0.5 percent line regulation: 0.5 percent input: 88-264vac 47-63hz 5G vibration able to withstand 300VAC surge input for 5 seconds short-circuit/overload/overvoltage protection 3-year warranty certifications: UL/cul/TUV/CE/CB for more 12 Volt power supplies. Detailed specifications: primary output voltage (VDC): 5 output current (a): 6 maximum output power (W): 66 family: supplier specialized-65 additional output voltages (VDC): 12 input voltage (VAC): 88 to 264 input frequency: 47 to 63 maximum input current (a): 2 output connector Type: screw terminal block number of outputs: 2 product Type: AC to DC power supply efficiency ( percent ): 79 minimum isolation voltage: 3000V operating temperature-min (CEL): -25 operating temperature-max (CEL): 70 Length (inch): 5.1 width (inch): 3.9 height (inch): 1.5 agency approvals: UL/cul/TUV/CE/CB Type: auto switching style: multiple output.
