Description

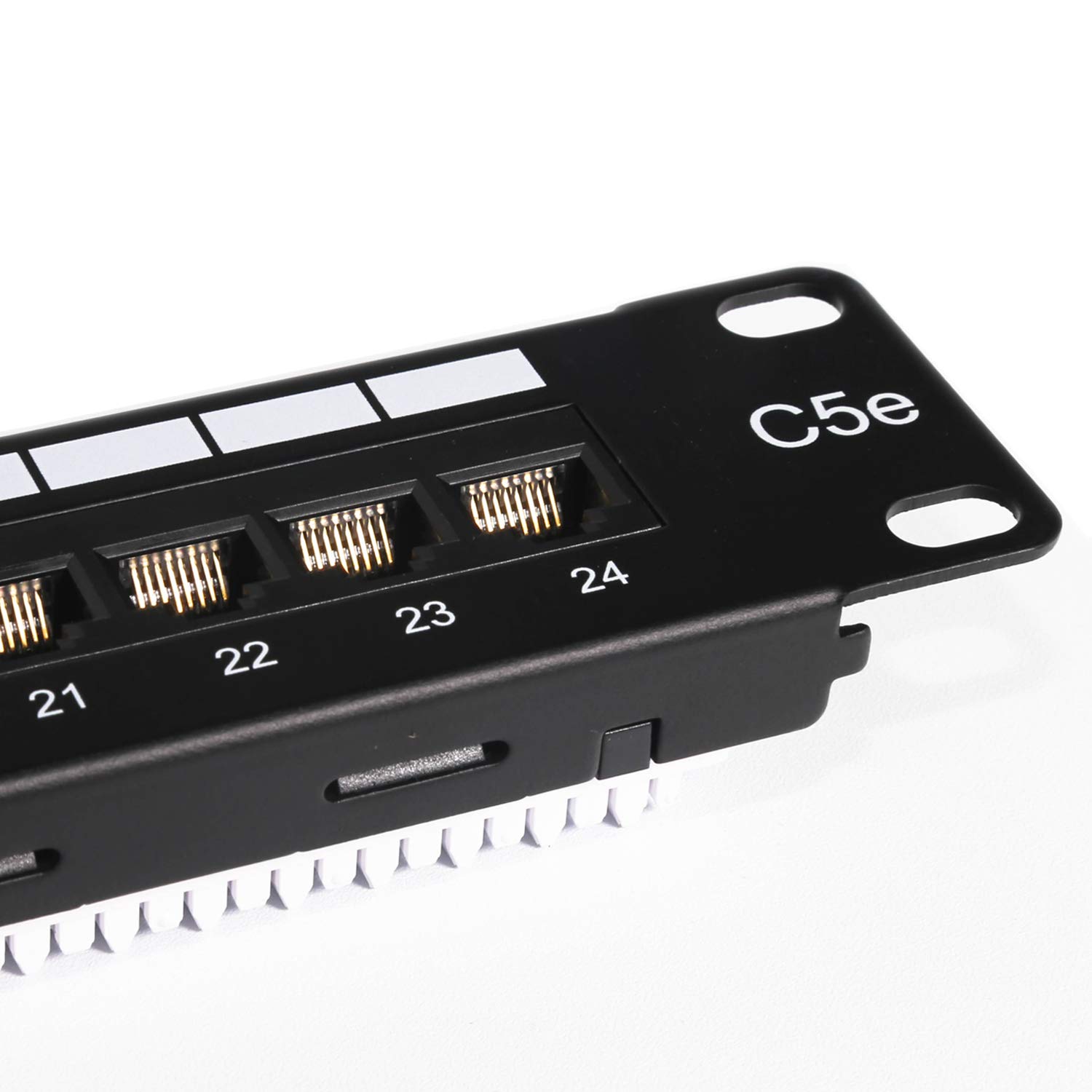

LINKOMM 1U 24-Port 19" Flush-Front Patch Panel
LINKOMM 24-Port RJ45 Patch Panel provides the fast data transfer performance certified with TIA/EIA 568C.2. It supports 10G BASE-T Ethernet. The IDC terminations support either 110 or Krone punch-down tool. Nice and neat color-coded labeling identifies T568A And T568B Wiring. The flush front RJ45 modular jack patch panel improves the professional structured cabling in data center.
Material
- Front panel: SPCC, 1.5mm thickness with black(RAL 9005) color painted
- Jack housing: ABS+PC, UL94V-0
- Contact bracket: PC, UL94V-2
- Jack contact: Phosphor Bronze with Nickel plated
- Finish: 50 micro-inch Gold plated on Plug contact area
- IDC housing: PC and Glass Fiber, UL 94V-0
- IDC terminal: Phosphor Bronze with Tin plated
- Cable holder: Nylon
- PCB: FR4, UL94V-0
Performance
- T568A&T568B wiring
- Insertion force: 20N max. (IEC 60603-7-4)
- Retention strength: 7.7 kg between Jack and Plug
- Operating temperature: -10℃ to 60℃ (ISO/IEC 11801, ANSI/TIA 568C.2)
- Life cycles: 750 cycles min
- IDC Suitable for 22-26AWG stranded or solid wire, compatible with 110 or Krone punch-down tool
- The transmission performance is compliance with ANSI/TIA 568B C.2 standard
package contents
- 1 X 24-Port Patch Panel
- 4 X Cable management rings
- 5 X Cable ties
LINKOMM 24-Port RJ45 Patch Panel provides the fast data transfer performance certified with TIA/EIA 568C.2. It supports 10G BASE-T Ethernet. The IDC terminations support either 110 or Krone punch-down tool. Nice and neat color-coded labeling identifies T568A And T568B Wiring. The flush front RJ45 modular jack patch panel improves the professional structured cabling in data center.
Material
- Front panel: SPCC, 1.5mm thickness with black(RAL 9005) color painted
- Jack housing: ABS+PC, UL94V-0
- Contact bracket: PC, UL94V-2
- Jack contact: Phosphor Bronze with Nickel plated
- Finish: 50 micro-inch Gold plated on Plug contact area
- IDC housing: PC and Glass Fiber, UL 94V-0
- IDC terminal: Phosphor Bronze with Tin plated
- Cable holder: Nylon
- PCB: FR4, UL94V-0
Performance
- T568A&T568B wiring
- Insertion force: 20N max. (IEC 60603-7-4)
- Retention strength: 7.7 kg between Jack and Plug
- Operating temperature: -10℃ to 60℃ (ISO/IEC 11801, ANSI/TIA 568C.2)
- Life cycles: 750 cycles min
- IDC Suitable for 22-26AWG stranded or solid wire, compatible with 110 or Krone punch-down tool
- The transmission performance is compliance with ANSI/TIA 568B C.2 standard
package contents
- 1 X 24-Port Patch Panel
- 4 X Cable management rings
- 5 X Cable ties
