Teensy Prop Shield Low Cost (no Motion Sensors)

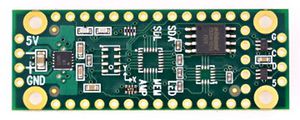

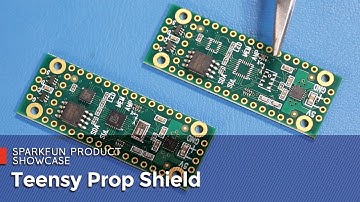

the fine folks at P jrc have come up with a sweet add-on shield for the teensy development board this is the prop shield its solder is directly to the teensy 3.2 or teensy LC to keep your project small and you can use to control lights and sound the prop shield comes in two different flavors regular and LC or low-cost the regular shield has a two watt speaker amplifier pressure and temperature sensor gyroscope accelerometer and magnetometer and eight megabyte serial flash memory for storing sound clips images and logging data the LC version is missing the temperature and pressure sensor gyroscope accelerometer and magnetometer both have 5 volt buffers that are meant to send data to serial addressable leds like ws2812 the teensy can also handle LEDs with faster clock rates like dot Stars and APA 102 s with the fast LED library to show you the prop Dan action I created this simple project
