Description

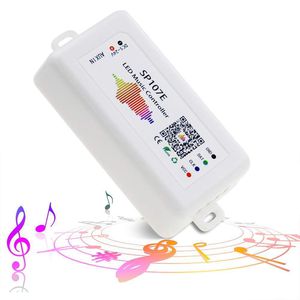

Semoic，a legal trade mark, has been registered. Only those who are authorized are available to sell items under Semoic. Semoic will bring you joyful shopping experience. Name: SP107E Addressable LED Music Controller
Working voltage: DC5V~24V
Remote distance: 20 Meters
Control up to 960 Pixels
Working temperature: -20 Celsius~60 Celsius
Certificates: CE, RoHS
Sync to the Rythm of music
Support 29 LED Driver ICs
IOS Ver. 10.0 or later; Android Ver. 4.4 or later; Bluetooth Ver 4.0 or later
colour: white
Material: ABS
size: 85*45*22mm
Warning:
It can support WS2812B and WS2813 but there is no option on the setting page. Please choose WS2811 when connect it to WS2812B and WS2813. When connecting WS2813 LED strip, please connect Bi wire to GND port.
The controller cannot regulate the output voltage at the VCC. That means the output voltage of your power supply must be the same as the work voltage of your led lights. If your lights need 5V input, please use a 5V power supply, never use 12V or 24V power supply.
The controller only supports LED lights with smart IC. It cannot support ordinary RGB/RGBW LED strip without IC.
Please use a power supply not a battery to power the controller. The output power of power supply must be more than the max power of led light. Part of the color effects that the controller can display
Package Contents:
1x SP107E music controller
1x 3pin JST connector
1x Female DC connector
1x 1 to 2 Audio cable
1x Mini screw driver
1x User manual

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Semoic LED Controller, WS2812B WS2811 Music Sync Bluetooth Controller, iOS Android Smartphone App Control for WS2813 SK6812 SK6812-RGBW WS2801 LED Strip LED Matrix Panel LED Pixel Light

Price is below average

Get price

Current Price

$14.14

Average

$14.48

Min Price

$12.19

Max Price

$15.52

Price dynamics

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

Welcome to Light Tubes In this video i will show you How to install SP107E with Led Matrix WS2812B So, here is the SP107E Led Controller In one package there are some accessories Led controller unit, manual book, screwdriver, audio cable, Cable supply voltage, and 3-pin cable for connecting to the led matrix This controller has interesting features Can be controlled through phone with bluetooth connection Can be used for almost all kind of led with IC driver 18 led strip effect, 30 led matrix effect, and 180 non-music effect There are two way how to send music input to the controller The first is using the audio cable which included in the supply and the second is using the built-in microphone on the controller But, in this video i will just sharing for the second way For the first way, please check my previous video: LC1000A Led Controller I will use 2 pcs of led matrix 8x8 pixel So,
