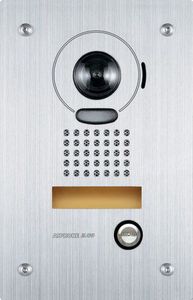

The Aiphone JK-DVF vandal-resistant flush-mount audio/video door station works with an Aiphone JK Series master station (sold separately) to enable remote communication with visitors prior to authorizing access to the building. The station includes a 1/4" color camera that sends live video feed to a master station when a visitor presses the call button. The camera's 170-degree wide-angle view can be panned, tilted, and zoomed by the master station to create a customized view of the visitor area. A white LED illuminates the visitor area to brighten the video feed in low-light environments.

The stainless steel faceplate and clear polycarbonate lens cover are weather and vandal resistant. The faceplate flush mounts using the included backbox. Overall housing dimensions are 8-1/4 x 5-5/16 x 5/16 inches/209 x 135 x 8 mm (H x W x D) and the backbox dimensions are 7-3/32 x 4-3/8 x 1-25/32 inches/180 x 110 x 45 mm (H x W x D). (H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.)

Door intercom systems allow an occupant of a building to communicate remotely with a visitor through at least one door intercom and master intercom. Master intercoms with a door-access button remotely unlock the door for the visitor.

Aiphone manufactures intercom systems for residential, business, and healthcare structures. The company, founded in Japan in 1948, has its North American headquarters in Bellevue, WA. Aiphone meets International Organization for Standardization (ISO) standards 9001 and 14001.

What's in the Box?

• Aiphone JK-DVF door station
• Flush-mount backbox
• Mounting hardware
• Security driver
• (2) clear nameplates
• Instructions
