Description

Does your meter safety enough?
without cutting the circuit, our meter can quickly measure the current
Conforms to CE, FCC, IEC61010-1 600V CAT III, pollution class II safety standard.

Does your meter easy to use enough?
Designed with beginner in mind, ZT-QB4 adopts Aimometer newest technology which
can automatically identify the tested parameters and choose their required range.
You need not to switch the function knob and choose the range all the time.

Features:
Measure AC current (maximum 600A by clamp)
Measure AC and DC voltage
Measure inrush current, capacitance, diode, temperature
Measure frequency, resistance, continuity
NCV measurement (non-contact voltage detection)
Clamp on frequency function
True RMS, Auto range, data hold, peak hold, auto power off
Backlight with flashlight
Low battery indication

Specifications:
Display: 4000 counts
AC current: 4A ±(5%+5counts); 40A/400A/600A ±(2.5%+8counts)
DC voltage: 4V/40V/400V/600V ±(0.5%+3counts)
AC voltage: 4V/40V/400V/600V ±(1.0%+3counts)
Capacitance:
4nF ±(5.0%+20counts);40nF/400nF/4μF/40μF/400μF (2.0%+5counts);
4mF ±(5.0%+5counts)
Resistance:
4kΩ ±(1.5%+3counts); 40kΩ/400kΩ/4MΩ±(1.0%+3counts);
40MΩ ±(1.5%+3counts)
Temperature: -30~1000℃/-22~1832℉ ±(2.5%+5counts)
Frequency: 4Hz/40Hz/400Hz/4kHz/40kHz/400kHz/1MHz ±(0.1%+2counts)
Diode: Yes
Buzzer: If the resistance less than 30Ω, the continuity beeper sounds
Jaw Capacity: 25mm
Power: 1.5V (AAA) x 2
Size: 172mm x 64mm x 32 mm
Weight: 172g

Package Includes:
1 * Clamp Meter
1 * Probes
1 * Carrying Case
1 * Wrist Lanyard
1 * User Manual

Note:
The batteries are not included in the package due to Aviation Security Check

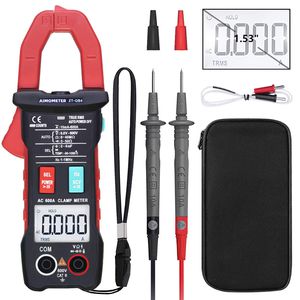

Aimometer ZT-QB4 600A Clamp Meter Smart Digital Multimeter True RMS Auto-Ranging 4000 Counts Diode Temperature Capacitance Inrush Current Tester

Price is below average

Current Price

$25.99

Average

$27.99

Min Price

$25.99

Max Price

$29.99

Price dynamics

7%
