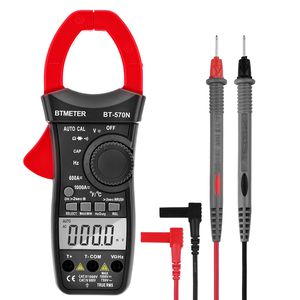

Why BT-570N Pro Clamp Multi-meters?

• - Auto(15mins without operation) / Manual shut down optional
• - High resulotion,True RMS for increased accurate measurement regardless of waveforms.
• - 6000 counts Large Backlight LCD screen makes this current clamp meter  easy to read.
• - Average sensing, calibrated to rms of sine wave on AC Voltage, AC Current test
• - Easy to use, comes with all accessories to start (9V battery, thermocouple, test leads, multimeter case)

Specifications:

• 6000 Counts Auto Ranging clamp tester
• DC Voltage: 600mV,6V,60V,600V,1KV
• AC Voltage: 600mV,6V,60V,600V,750V
• DC Current: 200A,1000A(Resolution 0.1 amp/ 1 amp)
• AC Current: 200A,1000A(Resolution 0.1 amp/ 1 amp)
• Resistance: 400Ω,4000Ω,40KΩ,400KΩ,4MΩ,40MΩ
• Capcitance:9.999nF, 99.99nF,999.9nF,9.999uF,99.99uF,999.9uF,9.999mF, 99.99mF
• Frequency:9.999Hz,99.99Hz,999.9Hz,9.999kHz,99.99kHz,999.9mHz
• Duty cycle:0.1%~99.9%
• Temperature:-20℃~-1000℃(-4℉~1832℉)

More features:

• Data Hold
• Diode Test
• Relative Value
• Auto Power OFF
• Low battery indicator
• Inrush Current Test
• Backlight(Manual turn on/off)
• Automatic negative polarity indication
