Description

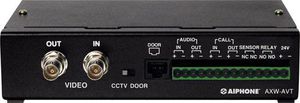

The AXW-AVT audio/video transmitter for the AX Series security system works with the Aiphone AWX-AVR receiver (sold separately) to condition the series' signal to enable use of Ethernet, fiber optics, and other third-party transmission equipment. External video input/output allows use of third-party camera and recording devices. The transmitter has a sensor input to connect an activation device such as a motion sensor (sold separately) to the AX Series system in order to remotely activate a door or camera. The relay output activates a connected external device such as a DVR (sold separately) when the system is actively transmitting audio and/or video signals.

Specifications
Overall dimensions	1-5/8 x 7 x 4 inches (H x W x D)*
Compatible door stations	Aiphone AX-DV, AX-DVF, AX-DM, IF-DA, IE-DC, IE-JA, IE-SS, and IE-SSR
Relay	30VDC at 1A normally open contact output
Sensor	Normally closed contact input
Compatible wiring	Cat-5e, 24 AWG UTP-4
Door input wiring connection	RJ45 jack
Power requirements	24VDC at 500 mA. Use one Aiphone PS-2420UL power supply (sold separately).

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Door intercom systems allow an occupant of a building to communicate remotely with a visitor through at least one door intercom and master intercom. Master intercoms with a door-access button remotely unlock the door for the visitor.

Aiphone manufactures intercom systems for residential, business, and healthcare structures. The company, founded in Japan in 1

Aiphone AXW-AVT Audio/ Video Transmitter for AX Series Integrated Audio & Video Security System

Get price

Current Price

$500

Average

$421.73

Min Price

$350

Max Price

$500

Price dynamics

16%

Description

Specifications
Overall dimensions	1-5/8 x 7 x 4 inches (H x W x D)*
Compatible door stations	Aiphone AX-DV, AX-DVF, AX-DM, IF-DA, IE-DC, IE-JA, IE-SS, and IE-SSR
Relay	30VDC at 1A normally open contact output
Sensor	Normally closed contact input
Compatible wiring	Cat-5e, 24 AWG UTP-4
Door input wiring connection	RJ45 jack
Power requirements	24VDC at 500 mA. Use one Aiphone PS-2420UL power supply (sold separately).

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Aiphone manufactures intercom systems for residential, business, and healthcare structures. The company, founded in Japan in 1

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
