Description

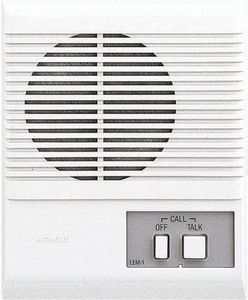

The Aiphone LEM-1 Open Voice master intercom works with one Aiphone LE series door or sub-master intercom (sold separately) to enable audio communication with visitors at a door and with other rooms within the building. The master intercom can initiate communication with and receive calls from a door or sub-master intercom. Depressing the push-to-talk button on the master allows the user to talk to the door or sub-master intercom user, and releasing the button immediately transmits sound from the door or sub-master intercom to the master for 20 seconds.

At any time, the master user can listen to audio transmissions from the door or sub-master intercom. The audio volume is adjustable, and switching the power button to off silences the master intercom's chime alerts. The housing is white plastic and mounts to a wall using the included bracket. The system is hardwired to be powered by a 6V power supply (sold separately).

Specifications
Overall dimensions	6-5/16 x 5-3/16 x 2 inches/160 x 132 x 51 mm (H x W x D)*
Communication output	350 mW
Maximum distance from door/sub to master	650 ft. using a 22 AWG wire, 1,600 ft. using an 18 AWG wire
Compatible wires	Aiphone 822202 or 821802 (sold separately)
Power requirements	Aiphone SKK-620B 6V power supply (sold separately)

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Door intercom systems allow an occupant of a building to communicate remotely with a visitor through at least one door intercom and master intercom. Master intercoms with a door-access button remotely unlock the d

Aiphone LEM-1 Open Voice Master Intercom, Accepts One Door or Sub-Master Intercom

Get price

Current Price

$100.39

Average

$90.51

Min Price

$71.06

Max Price

$109.48

Price dynamics

10%

Description

Specifications
Overall dimensions	6-5/16 x 5-3/16 x 2 inches/160 x 132 x 51 mm (H x W x D)*
Communication output	350 mW
Maximum distance from door/sub to master	650 ft. using a 22 AWG wire, 1,600 ft. using an 18 AWG wire
Compatible wires	Aiphone 822202 or 821802 (sold separately)
Power requirements	Aiphone SKK-620B 6V power supply (sold separately)

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

welcome to the a phone video series on the LEM - 1 DL this is Derek and in this episode we'll be talking about the LEM 1 DL and the stations that are compatible with it the LEM 1 DL is an audio-only door entry master station capable of talking to and unlocking a single door or a gate the LEM - 1 BLS is a boxed set that includes the LEM 1 dl master station the led door station and the PT - 12 10 and power supply the led door station that comes in the kit is a plastic surface mount unit like all a phone door stations the LED is weather rated and intended for outdoor use if a flush mount unit is required several options are available the le - SS - one G can be used in one gang applications in two gang applications you can use the led a the le - SS or the le - SS are for three gang applications use the LS - NVP the lem 1 dl master is designed to sit on a desk or it can be wall mounted by se
