Description
Altronix StrikeIt dual channel panic device power controller is designed to provide 24V DC power for a maximum of two electrified panic devices with very high inrush requirements. Each channel has an adjustable relock delay input that will control a pair of doors simultaneously or independent control of two single doors. Unit has two sets of relays per channel which can be configured to trigger external relays, automatic door openers, ADA push plate switches etc. Unit can control automatic door operators where the doors are always locked or where the doors are unlocked during the business day. Input: 115V AC 50/60Hz, 1.9 amp; 2 N/O trigger inputs. Output: 2 24 VDC individually controlled lock outputs rated at 16 amp for 300ms; one 12V DC filtered regulated auxiliary output rated at 1.5 amp continuous supply current (Not affected by FACP trigger); One 24V DC filtered regulated auxiliary output rated at 1 amp continuous supply current (Not affected by FACP trigger); 2 delayed follower form "C" relay outputs rated at 1 amp/28V DC, delay time is selectable 0.5 second or 1 second, energized duration is 1 second; 2 follower form "C" relay outputs rated at 1 amp/28V DC, Relays energize while input is closed. Fire alarm disconnect: normally closed FACP trigger input. Programmable fire alarm disconnect options: removes power to outputs and disables delayed follower relays; connects power to lock outputs and enables delayed follower relays. LK1 and LK2 adjust the panic device release time for the lock outputs from 300ms to 30 seconds. Operating temperature: 0 to 49 degree C ambient. BTU/Hr: 196.5BTU/Hr. System AC input VA requirement: 218.5VA. Wall mount enclosure for indoor use. Accommodates up to 2 12V DC/7AH batteries. Measures 13-inches width by 13-1/2-inches height by 3-1/4-inches depth. 1/2-inches and 3/4-inches combination knockouts. UL listed, CUL Listed, CSFM - California State Fire Marshal Approved, MEA - NYC Department of Buildings Approved.

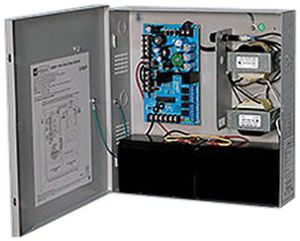

Altronix STRIKEIT1 Dual Channel Panic Device Power Controller, 12/24 VDC (Pack of 1)
Current Price
$308.55
Average
$289.08
Min Price
$75.04
Max Price
$419.8
Price dynamics
6%
Description
Altronix StrikeIt dual channel panic device power controller is designed to provide 24V DC power for a maximum of two electrified panic devices with very high inrush requirements. Each channel has an adjustable relock delay input that will control a pair of doors simultaneously or independent control of two single doors. Unit has two sets of relays per channel which can be configured to trigger external relays, automatic door openers, ADA push plate switches etc. Unit can control automatic door operators where the doors are always locked or where the doors are unlocked during the business day. Input: 115V AC 50/60Hz, 1.9 amp; 2 N/O trigger inputs. Output: 2 24 VDC individually controlled lock outputs rated at 16 amp for 300ms; one 12V DC filtered regulated auxiliary output rated at 1.5 amp continuous supply current (Not affected by FACP trigger); One 24V DC filtered regulated auxiliary output rated at 1 amp continuous supply current (Not affected by FACP trigger); 2 delayed follower form "C" relay outputs rated at 1 amp/28V DC, delay time is selectable 0.5 second or 1 second, energized duration is 1 second; 2 follower form "C" relay outputs rated at 1 amp/28V DC, Relays energize while input is closed. Fire alarm disconnect: normally closed FACP trigger input. Programmable fire alarm disconnect options: removes power to outputs and disables delayed follower relays; connects power to lock outputs and enables delayed follower relays. LK1 and LK2 adjust the panic device release time for the lock outputs from 300ms to 30 seconds. Operating temperature: 0 to 49 degree C ambient. BTU/Hr: 196.5BTU/Hr. System AC input VA requirement: 218.5VA. Wall mount enclosure for indoor use. Accommodates up to 2 12V DC/7AH batteries. Measures 13-inches width by 13-1/2-inches height by 3-1/4-inches depth. 1/2-inches and 3/4-inches combination knockouts. UL listed, CUL Listed, CSFM - California State Fire Marshal Approved, MEA - NYC Department of Buildings Approved.
