DVR Specifications:
* Video compression: H.264
* Analog video input: 16-ch, BNC interface(1.0Vp-p,75Ω),supporting coaxitron connecting
* Supported HD TVI input: 1080P/25Hz,1080P/30Hz,720P/25Hz,720/30Hz,720P/50Hz, 720P/60Hz
* Supported AHD input: 720P/25Hz,720P/30Hz
* IP video input: 2-ch, Up to 1080P resolution
* Audio compression: G.711U
* Audio input/Two-way audio input: 1-ch,RCA(2.0Vp-p,1KΩ)
* HDMI/VGA Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 ×1440)/60Hz, 1920 × 1080/60 Hz, 1280 ×1024/60 Hz, 1280 × 720/60Hz, 1024 ×768/60 Hz
* Synchronous playback: 16-ch
* Hard disk interface: 2 SATA interface (Up to 6TB capacity for each disk)
* USB port: 1*USB2.0，1*USB3.0
* Power supply: 12V DC
* Consumption: ≤30W
* Working temperature: -10℃-+55℃
*Dimensions (W*D*H): 380*320*48mm (15.0*12.6*1.9inch)
Camera Specifications:
* Image Sensor:2MP CMOS Image Sensor
* Effective Pixels: 1920(H)*1080(V)
* Lens: 3.6mm,angle of View: 82.2°
* Min. Illumination: 0.01 Lux @(F1.2,AGC ON), 0 lux with IR
* Day & Night: IR cut filter with auto switch
* IR LEDs: 24pcs,up to 20m IR distance
* HD Video Output: 1 Analog HD output
* S/N Ratio: ＞62dB
* Power Supply: 12V DC±15%
* Weather Proof Ratings: IP66
* Dimension: Φ70×149.5mm (Φ2.76"×5.89")

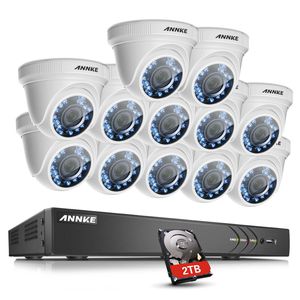

Package Included
* 1× 16CH 1080P HD-TVI DVR, 2TB HDD included
* 12× 2.0MP wired camera
* 12× 60ft BNC video cable
* 3× 4-to-1 splitter cable
* 4× Power adapter
* 1× Mouse & Remote control
* 1× User's manual & CD
