Tips:

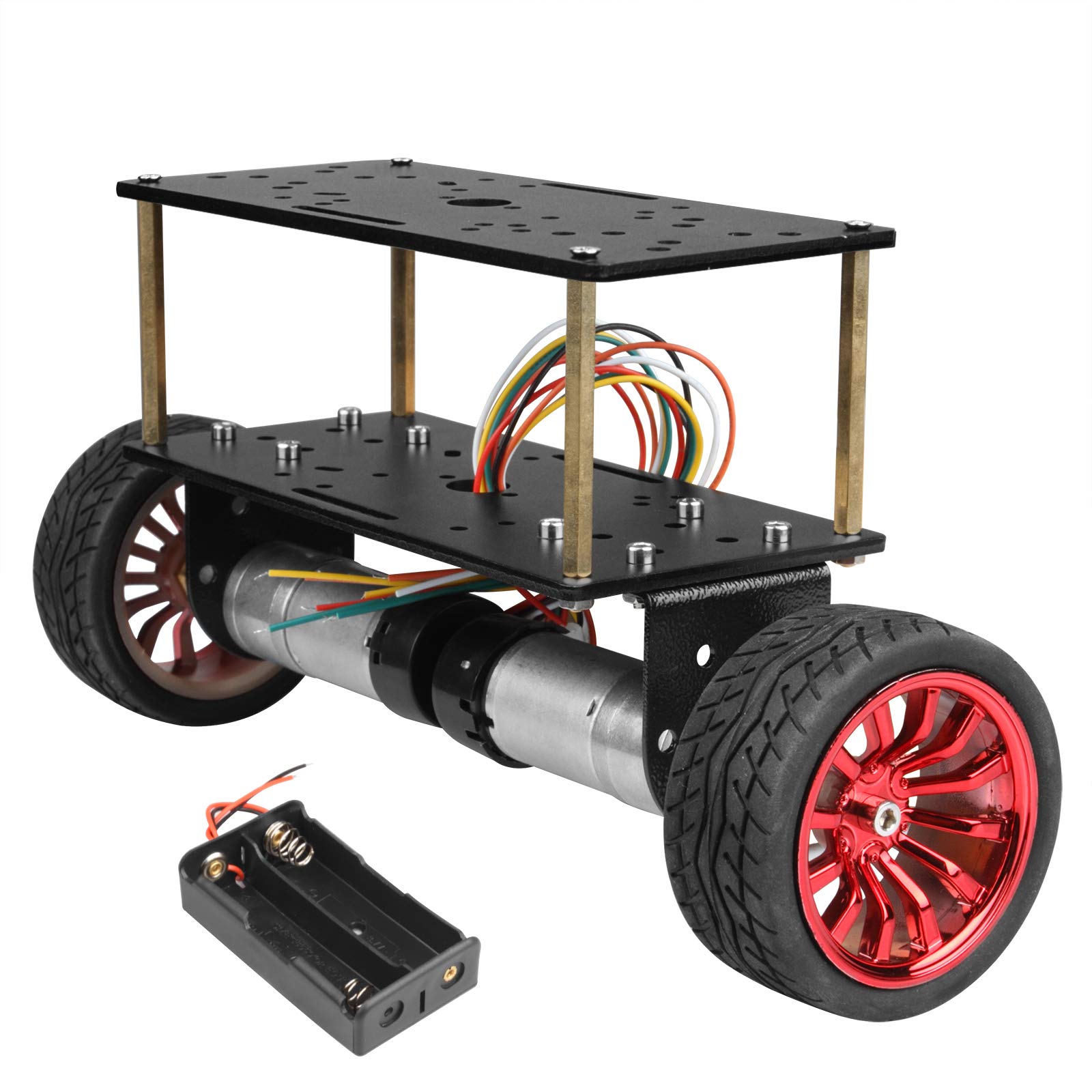

1. The car chasis is mainly used for balance car DIY development research experiments, not for climbing or crossing obstacles.

2. Balanced car base compatible development platform: Arduino, Raspberry Pi

Battery box specification: 18650*2pcs (18650 battery is not included in the product, customers need to purchase it themselves)

Motor name: 25mm DC carbon brush motor (with Hall sensor code plate)

Number of motors: 2pcs

Motor voltage: DC 9V

Motor speed: 150±10% rpm

Code disc parameters: 2 pulses / circle

Sensor operating voltage: 3-5V

Car speed (minutes per meter): 20m/min

Torque kg.cm: 9.5 kg.cm

Climbing: not climbing

Body material: aluminum alloy oxidation thickness 3mm

Body surface treatment: painting

Small car weight: 2kg max

Tire: rubber material diameter 6.5cm wheel plastic

Product appearance color: black + red

DIY installation time: estimated 15 minutes

Compatible development platform: arduino, Raspberry Pi

Product size: 24*7*12cm

Packing size: 17*13*5cm

Total weight: 570g

Packing list:

Platform Panel*2  M3 Hexagon Screws*8

Motor bracket*2  M3 nut*14

M3 wrench*1  motor*2

M3 * 5  flat head screws *4 motor cable line *2

Rubber wheel *2  M4 hex screw *2

Coupling *2  M2 wrench *1

Top wire*2  M4 wrench*1

Copper column (support column) *4  M3 flat head screw *4

18650 battery case*1  M3 * 5  flat head screw*2
