Description

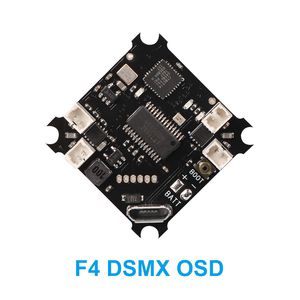

BETAFPV F4 FC 1S Brushed Flight Controller DSMX Receiver ESC OSD Smart Audio for Tiny Whoop FPV Micro Racing Drone
Please note the binding procedure is different from before, there is no bind button on it, just set in betaflight and then power on, turn on the radio and select bind mode, more details checking here:
https://betafpv.freshdesk.com/support/solutions/articles/27000021366-how-to-bind-your-radio-transmitter-brushed-fc-board
Specification
CPU: STM32F411CEU6
Six-Axis: MPU6000
ESC: All FETs are rated at 30A maximum. Support 6x15mm/7x20mm/8x20mm/8.5x20mm etc motors.
Size: 26mm x 26mm,fully compatible with the Inductrix quad frame and mounting pattern
Firmware version: Betaflight MATEKF411RX 3.5.0
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: DSM2/DSMX (DSMX in default)
Power Cable: 55mm, with JST-PH 2.0 connector, AKA PowerWhoop connector
Weight: 3.8g
Package:
1 * F4 DSMX Brushed FC ( 55mm PH-JST 2.0 power cable soldered)
4 * M1.2x4mm screws (Fit for stock Inductrix frame)
4 * M1.4x5mm screws (Fit for Beta75 etc 75mm frame)
4 * Anti-vibration ruber dampers
1 * 55mm PH-JST 1.25 power cable pigtail
BETAFPV F4 FC 1S Brushed Flight Controller DSMX Receiver ESC OSD Smart Audio for Tiny Whoop FPV Micro Racing Drone
Current Price
$45.99
Average
$44.59
Min Price
$39.99
Max Price
$48.99
Price dynamics
3%
Description
BETAFPV F4 FC 1S Brushed Flight Controller DSMX Receiver ESC OSD Smart Audio for Tiny Whoop FPV Micro Racing Drone
Please note the binding procedure is different from before, there is no bind button on it, just set in betaflight and then power on, turn on the radio and select bind mode, more details checking here:
https://betafpv.freshdesk.com/support/solutions/articles/27000021366-how-to-bind-your-radio-transmitter-brushed-fc-board
Specification
CPU: STM32F411CEU6
Six-Axis: MPU6000
ESC: All FETs are rated at 30A maximum. Support 6x15mm/7x20mm/8x20mm/8.5x20mm etc motors.
Size: 26mm x 26mm,fully compatible with the Inductrix quad frame and mounting pattern
Firmware version: Betaflight MATEKF411RX 3.5.0
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: DSM2/DSMX (DSMX in default)
Power Cable: 55mm, with JST-PH 2.0 connector, AKA PowerWhoop connector
Weight: 3.8g
Package:
1 * F4 DSMX Brushed FC ( 55mm PH-JST 2.0 power cable soldered)
4 * M1.2x4mm screws (Fit for stock Inductrix frame)
4 * M1.4x5mm screws (Fit for Beta75 etc 75mm frame)
4 * Anti-vibration ruber dampers
1 * 55mm PH-JST 1.25 power cable pigtail
