Description

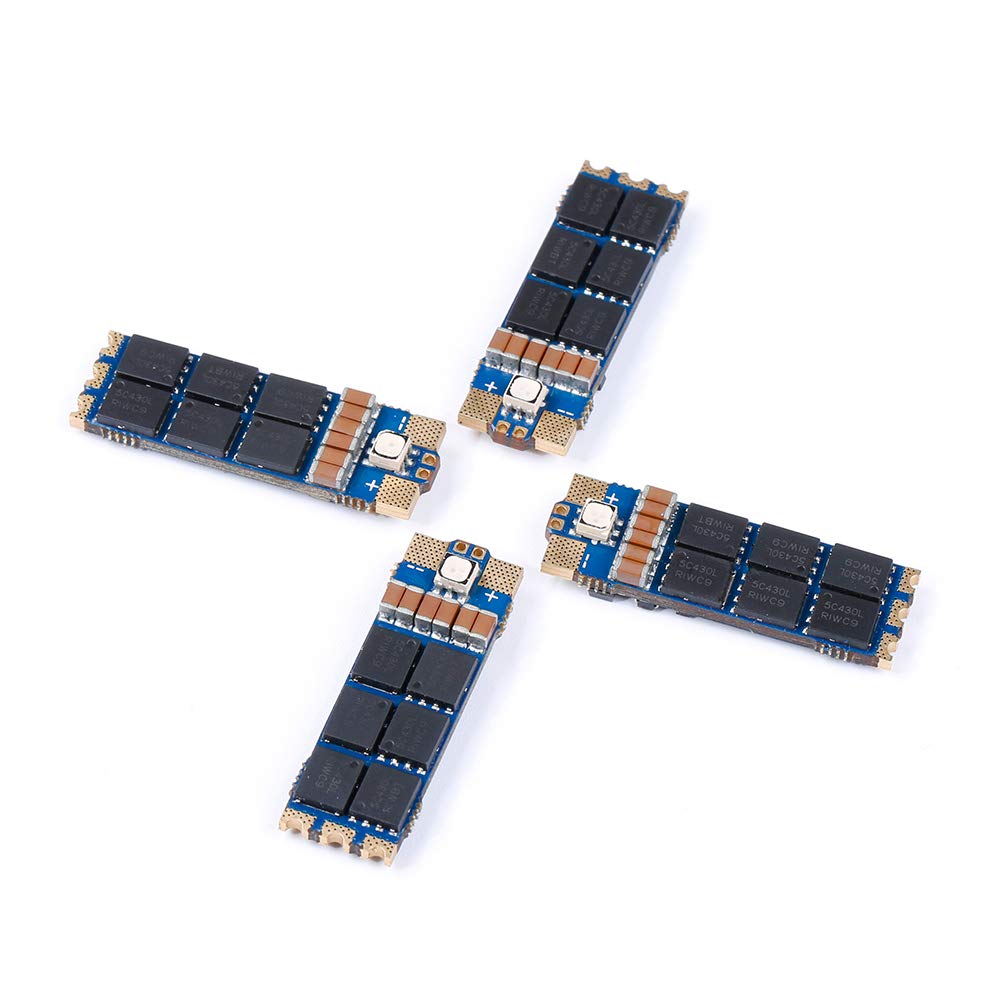

The SucceX 55A Slick 2-6S ESC is specially designed for FPV racing or freestyle frames with slim arms like iFlight XL5 V4 ,SL5 DC5 FH5 frame.
Less weight and less surface for to be more aerodynamic than your opponents.
The STM32F051 is combined with a high-performance 3in1 driver to lower the signal delay from throttle to the receiver.
Top Features:
8 layers double-sided PCB board
3oz 1.4mm thick power board
32bit STM32F051 MCU, 48kHz maximum clock speed
TDK MLCC Low ESR ceramic capacitors
Top grade NTMFS5C430L MOSFET
Specification:
MCU: STM32F051
Up tp 48kHz PWM frequency
Capacitance: 220uF/35V
Current Sensor: Yes
Input: 2-6S LIPO
RGB LED: Yes
Constant: 55A / Burst: 65A
BlHeli32 telemetry: Yes
BEC: No
Supports up to Dshot1200, Proshot, Oneshot, Multishot
Target: iFlight-BL32-PRO
Weight:3.7g without wires
Dimensions: 35*11mm
RECOMMENDATION:
No additional capacitor needed up to 5S!
But to encounter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!
Package Includes:
SucceX 55A Slick ESC *4pcs
capacitor * 4pcs
Power cables & ESC signal wires *4set
Less weight and less surface for to be more aerodynamic than your opponents.
The STM32F051 is combined with a high-performance 3in1 driver to lower the signal delay from throttle to the receiver.
Top Features:
8 layers double-sided PCB board
3oz 1.4mm thick power board
32bit STM32F051 MCU, 48kHz maximum clock speed
TDK MLCC Low ESR ceramic capacitors
Top grade NTMFS5C430L MOSFET
Specification:
MCU: STM32F051
Up tp 48kHz PWM frequency
Capacitance: 220uF/35V
Current Sensor: Yes
Input: 2-6S LIPO
RGB LED: Yes
Constant: 55A / Burst: 65A
BlHeli32 telemetry: Yes
BEC: No
Supports up to Dshot1200, Proshot, Oneshot, Multishot
Target: iFlight-BL32-PRO
Weight:3.7g without wires
Dimensions: 35*11mm
RECOMMENDATION:
No additional capacitor needed up to 5S!
But to encounter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!
Package Includes:
SucceX 55A Slick ESC *4pcs
capacitor * 4pcs
Power cables & ESC signal wires *4set
