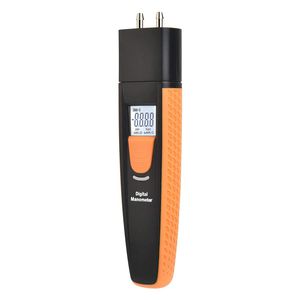

This Differential Pressure Manometer is a wireless differential pressure-probe used for accurate low-pressure measurements. It is great for measuring pressure in manifolds, static pressure, and pressure drops in buildings or ventilation systems. Users can read the measurements using the Free ManometerApp installed on their Android (4.3 or newer) or Apple (iOS 8.3 or newer) smart device. It can be used for determining air velocity and volume flow when used with pitot tubes(not included).
Features
- Bluetooth function.
- Free Manometer App to transmitting the measurement data.
- Accuracy: ± 0.006（0～0.2psi) /±（0.006+1.5%readings）（0.2～2psi).
- Resolution: 0.001psi.
- Measuring Ranges: ±13.79 kPa / ±2 psi / ±55.4 H2O.
- 11 Selectable Units of measure: inH2O, psi, bar, mbar, kPa, inHg, mmHg,zin2,FtH2O,cmH2O, kgcm2.
- LCD Display with backlight.
- Auto Power Off: 15 Min.
- Working temperature: 0～40℃.
- Storage temperature: -10～60℃.
- Power Type: 4 x AAA alkaline batteries.
- Dimensions: 6.5" x 1.5" x 0.87".
- Two years warranty against manufacturing defects.
One Set Included
- 1 x Manometer
- 2 Pairs of Tubing
- 1 x 1/8" Barb Access Fitting
- 1 x Instruction Manual
- 4 x AAA Alkaline Batteries
Note
The screen display default shows unit "psi", There is a button hidden inside the battery compartment, short press to switch in four pressure units: psi/ kPa/ inH2O/ cmH2O.
Warning
Pressure inputs of 10 psi or higher will damage the instrument. Do not apply pressure higher than the maximum pressure listed in the specification table.
