Safety Standards for Design and Production:
(1) The pressure measured by the digtal manifold pressure tester is gauge pressure.
(2) Pressure testing ranges from -101Kpa to 6Mpa (-0.1bar to 60bar).
(3) The limit pressure is 10 Mpa (100 bar).
(4) The maximum operating pressure of standard hose is 600 PSI ( approximate 4.13 Mpa, 41.3 bar ). The limit pressure is 3000 PSI approximate 20.68 Mpa, 206.8 bar ).
(5) Please confirm the rated pressure value of the tested equipment before testing. Do not use it if it exceeds the range of the instrument. Also for DY517A, if the packed hoses does not match the pressure requirement, you can use suitable replacements for testing.
(6) Do not use and store the instrument in high temperature, high humidity, flammable, explosive and strong electromagnetic fields.
(7) Please do not change the instrument internal circuit, to avoid any damage of the instrument or danger occurring.
Product specifications:
Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
Pressure test range: 0 Kpa - 6000 Kpa
Pressure test resolution: 1 Kpa
Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
Vacuum test: relative vacuum
Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
Vacuum test range: -101 Kpa - 0 Kpa
Vacuum test resolution: 1 Kpa
Temperature test unit: °C (Celsius), °F (Fahrenheit)
Temperature test range: -40°C-150°C (-40°F-302°F)
Temperature test resolution:
0.1°C (-40°C-99.9°C), 1°C (100°C-150°C)
0.1°F (-40°F-99.9°F), 1°F (100°F-302°F)
Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt
Built-in 89 kinds of refrigerant NIST: According to American NIST standard
Power Supply: 4 X 1.5V (SIZE.AA / LR6) (Battery not include)

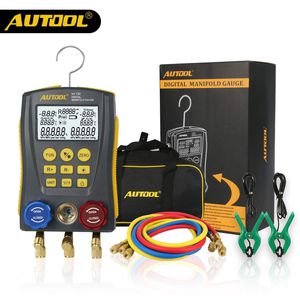

Packing list:
1x Refrigerantion Digital Manifold Gauge
2x Temperature Clip
3x Test Pipe
