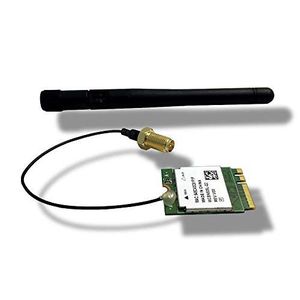

BRIGHTSIGN, NORTH AMERICA WIRELESS, BLUETOOTH, MODULE WITH M.2 INTERFACE AND SIN

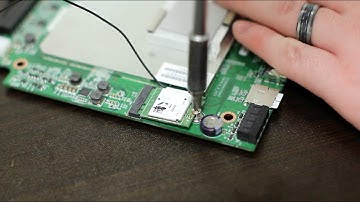

welcome to the brightsign player wireless module install tutorial first your work environment should be discharged of any static electricity properly ground yourself and discharge any static that's present on your body by touching something metal that's grounded to the earth place the bright side player face down on a protective surface to avoid scratching the enclosure now remove the four phillips screws from the back plate remove the back plate carefully xd and xd players have plastic teeth along one side of the backplate be careful not to break them if you have an ls player as well as removing the back plate there are two screws on the pcb that must be unscrewed before you can remove it next carefully slide the two plastic side bezels out from each end reach through the bezel openings to gently raise the printed circuit board up off the support posts shift the pcb towards the side wi
