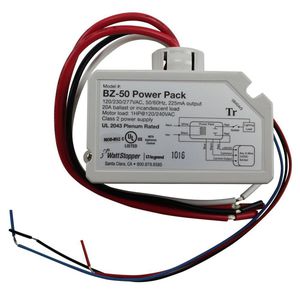

BZ-50 WattStopper Power Pack for Occupancy Sensors, 120V to 24V in White WATT STOPPER (10 POWER PACKS)

the BZ 150 universal voltage full-featured power pack provides 24 volts DC operating voltage 2 watt Stoppers low-voltage occupancy sensors in addition the BZ 150 enables the use of both manual on and automatic on operation hold on and hold off inputs in low voltage momentary switch operation the line voltage connections on the BZ 150 consists of a black wire which goes to the hot a white wire which goes to the neutral and your two red wires which are on either side of your relay when wiring your BZ 150 you'll take the black lead and one of the red leads wire them to your incoming hots you'll wire the white wire to your neutral and then you'll take the red wire and wire it to your load the low voltage connections on the BZ 150 consists of a red wire which is your 24 volts DC black wire which is your common the blue wire which is your control signal the orange wire which is your hold on t
