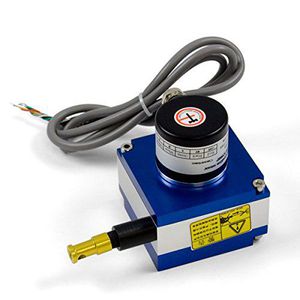

The color of the real product may be different ,each batch is not same ,have color yellow ,blue,green. Draw-wire Position Sensor is a highly efficient linear displacement measuring device, with ingenious design principle, through scientific combination of the special steel cable and angle measurement components (potentiometer or encoder), it make linear displacement motion of an object convert into electric signal that measurable and linearly proportional, thereby achieve accurate displacement measurement data output.Application areas
Linear guide system, the direct determination of the guide element, such as: the length limit, gantry cranes, level measurement Hydraulic system, with the piston-oriented systems or hydraulic cylinder, the displacement sensor deflection of these devices to collect data Scalable systems, such as presses, lifts, bending machine, bending machine Chains, cranes and cable winch to adjust, such as forklifts, stage equipment, lifts and cranes device.Measuring Range :0~2000mm Detection method : Incremental encoder Revolution:0.3mm/pulse Rope :wire rope 1mm, Plastic coated wire rope ,rope maximum load: 16KG Supply Voltage :24V Dc Signals output : Pushpull with A B Z 3 channelsWiring
Red=VCC, Black = 0V, Green = A, White = B, Yellow = Z if you want to buy indicator/display together, please see this link: https://www.amazon.com/dp/B01LXKPOIACALT 2000mm Encoder Type Draw Wire Linear Sensor Pushpull Output
