Description
Specification:
Power Supply Voltage: 5 VDC-5% to 24 VDC +15%, ripple (p-p): 5% max.Current Consumption(*1): 70mA max.
Resolution (pulses/rotation): 100, 360, 600, 1000, 2000 (Optional)
Output Phase: Phases A, B, and Z
Phase Difference Between Outputs: 90°±45° between A and B (1/4 T ± 1/8 T)
Output Configuration: NPN open-collector output
Output Capacity: applied voltage: 30 VDC max.; sink current: 35 mA max.; residual voltage: 0.4 V max.(at sink current of 35 mA)
Maximum Response Frequency(*3): 100kHz
Rise and Fall Times of Output: 1 μs max. (Control output voltage: 5 V, Load resistance: 1 kΩ, Cable length: 2 m max.)
Starting Moment of Force: 0.9 mN.m max.
Moment of Inertia: 1x10-6 kg.m² max.; (3x10-7 kg.m² max. at 600 P/R max.)
Radial Shaft Loading: 30N
Thrust Shaft Loading: 20N
Maximum Permissible Speed: 6,000r/min
Protection Circuits: Power supply reverse polarity protection, Load short-circuit protection
Ambient Temperature Range: operating: -10 to 70℃ (with no icing); storage: -25 to 85℃ (with no icing)
Operating/Storage Ambient Humidity Range: 35% to 85% (with no condensation)
Insulation Resistance: 20 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric Strength: 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration Resistance(Destruction): 10 to 500 Hz, 150 m/s² or 2-mm double amplitude for 11 min 3 times each in X, Y, and Z directions
Shock Resistance(Destruction): 1,000m/s² 3 times each in X, Y, and Z directions
Degree of Protection: IEC standard IP50
Connection Method: IEC standard IP64 (JED standard IP64f resistant to drop, oil)
Materials: case: ABS; main unit: aluminum; shaft: SUS420J2
Weight: 165g / 5.8oz (approx.)
Package list:
1 * Encoder

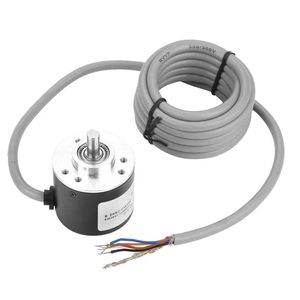

Encoder, 6,000 RPM Encoder E6B2-CWZ6C incremental Encoder Universal Encoder with a Diameter of 40 mm , DC5〜24V, Radial Shaft Load 30N, Shear Shaft Load 20N(360P/R)
Price is below average
Current Price
$13.89
Average
$19.17
Min Price
$13.59
Max Price
$24.79
Price dynamics
28%
Description
Specification:
Power Supply Voltage: 5 VDC-5% to 24 VDC +15%, ripple (p-p): 5% max.Current Consumption(*1): 70mA max.
Resolution (pulses/rotation): 100, 360, 600, 1000, 2000 (Optional)
Output Phase: Phases A, B, and Z
Phase Difference Between Outputs: 90°±45° between A and B (1/4 T ± 1/8 T)
Output Configuration: NPN open-collector output
Output Capacity: applied voltage: 30 VDC max.; sink current: 35 mA max.; residual voltage: 0.4 V max.(at sink current of 35 mA)
Maximum Response Frequency(*3): 100kHz
Rise and Fall Times of Output: 1 μs max. (Control output voltage: 5 V, Load resistance: 1 kΩ, Cable length: 2 m max.)
Starting Moment of Force: 0.9 mN.m max.
Moment of Inertia: 1x10-6 kg.m² max.; (3x10-7 kg.m² max. at 600 P/R max.)
Radial Shaft Loading: 30N
Thrust Shaft Loading: 20N
Maximum Permissible Speed: 6,000r/min
Protection Circuits: Power supply reverse polarity protection, Load short-circuit protection
Ambient Temperature Range: operating: -10 to 70℃ (with no icing); storage: -25 to 85℃ (with no icing)
Operating/Storage Ambient Humidity Range: 35% to 85% (with no condensation)
Insulation Resistance: 20 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric Strength: 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration Resistance(Destruction): 10 to 500 Hz, 150 m/s² or 2-mm double amplitude for 11 min 3 times each in X, Y, and Z directions
Shock Resistance(Destruction): 1,000m/s² 3 times each in X, Y, and Z directions
Degree of Protection: IEC standard IP50
Connection Method: IEC standard IP64 (JED standard IP64f resistant to drop, oil)
Materials: case: ABS; main unit: aluminum; shaft: SUS420J2
Weight: 165g / 5.8oz (approx.)
Package list:
1 * Encoder
