Description

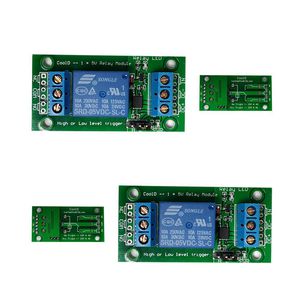

2PCS 5V Relay Module by CoolD Relay Board 3V 3.3V 5V 12V 24V series with Isolated Optocoupler(Opto Isolated) and High or Low Level Trigger for Arduino Raspberry Pi DSP AVR PIC STM ARM Controler
【FEATURES】
【High/Low Trigle Relay Module】Using jumper to choose high or low trigle lever for our system 【High Current Relay Board】The relay's maximum load up to AC 250V/10A / DC 30V/10A, but trigger Current just need 5mA 【Optocoupler Isolation】Isolation circuit let us more safty when we use DC to control AC or high DC 【Humanization Design for Interface】Can use screw to wiring your system or choose 0.1in(2.54mm) connecter to connect your system 【Widely Application Board】These 5v relay board works well with Arduino/ Raspberry Pi/STM /PIC /AVR /MCU/ARM/CNC machine/MSP430 and so on.
【SPECIFICATION】
Power Voltage -- DC 5V
Trigle Voltage -- Low: 0-1.5V ; High:3-5V
Trigle Current -- ~5mA
Max Loader -- AC-250V, 10A / DC-30V, 10A LED Show -- Red: Power / Green: Relay ON
Operate temperature -- -10 ℃ ~ +65 ℃
Outline Dimension -- 2.23 x 1.11 x 0.7in (L*W*H)
【WIRING】
DC+ -- 5V Power supply +
DC- -- 5V Power supply - (GND)
IN -- Trigle Signal(Must choose the jumper right positon)
COM -- Commer Interface
NO -- COM & NO will be short connect without triggle signal
NC -- COM & NC will be short connect with triggle signal
Note: Please take care of NO and NC interface to connect
We can solder 0.1'' 6pins to connect your PCB system
【PACKAGE INCLUDING】
2pcs * 1 Channel 5V Relay Module(Green Board)
【FEATURES】
【High/Low Trigle Relay Module】Using jumper to choose high or low trigle lever for our system 【High Current Relay Board】The relay's maximum load up to AC 250V/10A / DC 30V/10A, but trigger Current just need 5mA 【Optocoupler Isolation】Isolation circuit let us more safty when we use DC to control AC or high DC 【Humanization Design for Interface】Can use screw to wiring your system or choose 0.1in(2.54mm) connecter to connect your system 【Widely Application Board】These 5v relay board works well with Arduino/ Raspberry Pi/STM /PIC /AVR /MCU/ARM/CNC machine/MSP430 and so on.
【SPECIFICATION】
Power Voltage -- DC 5V
Trigle Voltage -- Low: 0-1.5V ; High:3-5V
Trigle Current -- ~5mA
Max Loader -- AC-250V, 10A / DC-30V, 10A LED Show -- Red: Power / Green: Relay ON
Operate temperature -- -10 ℃ ~ +65 ℃
Outline Dimension -- 2.23 x 1.11 x 0.7in (L*W*H)
【WIRING】
DC+ -- 5V Power supply +
DC- -- 5V Power supply - (GND)
IN -- Trigle Signal(Must choose the jumper right positon)
COM -- Commer Interface
NO -- COM & NO will be short connect without triggle signal
NC -- COM & NC will be short connect with triggle signal
Note: Please take care of NO and NC interface to connect
We can solder 0.1'' 6pins to connect your PCB system
【PACKAGE INCLUDING】
2pcs * 1 Channel 5V Relay Module(Green Board)
CoolD 1 Channel 5V Relay Module Relay Board 3V 3.3V 5V 12V 24V Series with Isolated Optocoupler(Opto Isolated) and High or Low Level Trigger for Arduino Raspberry Pi DSP AVR PIC STM ARM Controler
