Condition:100% brand new with good quality
Product Type: HC--SR501 Body Sensor Module
Operating voltage range: DC 4.5-20V
Quiescent Current: <50uA Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
Delay time: 5-18S(adjustable) the range is (0.xx second to tens of second)
Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds
Board Dimensions: 32mm*24mm
Angle Sensor: <100 ° cone angle Lens size
sensor:Diameter:23mm(Default)
Applications:
*Security Products
*the human body sensors toys
*the human body sensor lighting industrial automation and control, etc
Use:It can automatically and quickly open various types of incandescent, fluorescent lamps, buzzer, automatic doors, electric fans,automatic washing machine and dryer Machines and other devices,is a hightech products. Especially suitable for enterprises, hotels, shopping malls, warehouses and family aisles, corridors and other sensitive Sense of region, or for the security zone automatic lighting, lighting and alarm systems

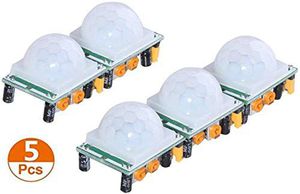

Package Included: 5 X HC-SR501 PIR Infared Sensor
NOTE: On this retrigger jumper is a solder jumper, and you need solder it by yourself
