140x Hard Jumper cable for breadboard Arduino. Jumper Cable for Arduino Breadboard. Dupont Wire Jumper Cable for Arduino Breadboard. - 1 x PIR Motion Sensor. - HC-SR505 small body sensing module is based on infrared technology.
Operating Voltage Range: DC4.5-20V
Static current: <60uA
Output level: High 3.3V / Low 0V
Trigger: repeatable trigger (default)
Delay time: Default 8S + -30% (can be customized range of a few tenths - tens of minutes)
PCB Dimensions: 10 * 23mm
Induction angle: <100 degree cone angle
Induction distance: 3 meters
Working temperature: -20 - +80 degrees
Sensor Lens Dimensions: Diameter: 10mm (default)

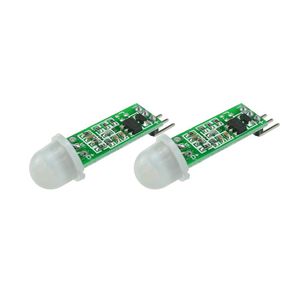

DEVMO 2PCS HC-SR505 Human Body Infrared PIR Motion Sensor Precise Infrared Detector Module Arduino MCU Raspberry Pi
140x Hard Jumper cable for breadboard Arduino. Jumper Cable for Arduino Breadboard. Dupont Wire Jumper Cable for Arduino Breadboard. - 1 x PIR Motion Sensor. - HC-SR505 small body sensing module is based on infrared technology.
Operating Voltage Range: DC4.5-20V
Static current: <60uA
Output level: High 3.3V / Low 0V
Trigger: repeatable trigger (default)
Delay time: Default 8S + -30% (can be customized range of a few tenths - tens of minutes)
PCB Dimensions: 10 * 23mm
Induction angle: <100 degree cone angle
Induction distance: 3 meters
Working temperature: -20 - +80 degrees
Sensor Lens Dimensions: Diameter: 10mm (default)
