Description

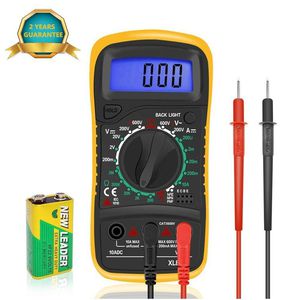

A Practical Electric Test Tool for AC/DC Voltage, DC Current, Resistance, Continuity, Capacitance, Frequency,Diodes Transistors,Transistor P-N junction & HFE(DC Amplification)test.Circuit Overload Protection.You can use this pocket multimeter such as factory, school lab, home hobby, machine repairing, etc.
A Good Helper for Study or Everyday Use - Safely applies to diagnose, assemble, and maintain household fuses, outlets, wiring, general-purpose batteries, car wiring, automotive circuitry and morefor Laboratory, useful for Education, Factory, Workshop, Recommended by Many Professionals Engineers.
Comprehensive Set of Features:Data Hold, Accurately Measures AC/DC Voltage, DC Current, Resistance, and More. Diode Assembly Test / Transistor P-N Junction test / Transistor hFE Test, Maximum Reading over Time and Continuity Buzzer
Specifications:
2.7" Large Backlight LCD Screen
Max display: 1999, Auto polarity display
Portable and compact design, overload protection on all ranges.
Diode assembly test/Transistor P-N junction test/Transistor HFE test
Continuity test with buzzer sound in circuit.
Low battery voltage indication
DC Voltage：200mV/2V/20V/200V ±(0.5%),1000V ±0.8%
AC Voltage：200mV/2V/20V/200V ±(0.8%), 750V ±(1.0%)
DC Current : 200μA/2mA/20mA ±(1.0%),200mA ±1.4%, 10A ±2%
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ ±(0.8%)
Triode Measurement：Yes (PNP/NPN Triode hFE)
Low Battery Indication: - /+ display
Fuse protection: F-200mA/250V
Over Range Indication: Only figure "1" on the display
Polarity Indication: "-" displayed for negative polarity
Operating Temperature: -0℃ to 40℃
Battery: 9V (Included)
Dimensions :145 x 70 x 40mm
Package Content:
1 x Digital LCD Multimeter
1 x 9V Battery
1 x Test Leads(Pair)
1 x Manual
1 x Orange Back Cover
