Description
Features
* 80000 main and secondary display
* Analog Bar Graph: 23 segments,update 40 time/sec
* Single Analyzed: measure synchronous: (AC+DC), (AC+Hz), (DC+dBm), (dBm+Hz), (Hz+Duty) ; Display synchronous: (°C+°F)
* Freq: 0.5Hz -1000.000000MHz
* Basic DC Accuracy 0.05%
* mV Impedance >1000MΩ
* 16 Freq pts, 1-99% duty selectable square wave output
* Analyzing component of current or voltage signal
* Resistance 0.1Ω - 80MΩ ,10-8000MΩ
* Capacitance 10nF-100µF
* Temp -50 - 1372°C, -58 - 2502°F
* dBm 20 types of reference impedance
* Auto data/peak hold w/ timer
* Rel % measure
* 36hrs dynamic record: MAX/MIN/AVG/MAX-MIN
* Communication: isolated optical RS232
* Measure speed 3/sec
* IEC 61010 CAT II 1000V ; CAT III 600V compliance
* 0.1-99.9% pulse duty cycle measuring
* Set upper and lower limit area measuring
* Timing measuring function and can connect to PC
* Use on production lines, laboratories, factories, radio-technology, R&D, maintenance, repairing work
Specifications
Max voltage between any terminal and earth ground: 1000V RMS
Continuity Beeper: 3kHz Approx
Operating and Storage Temp: 0-50°C, -20 - 60°C
Operating and Storage Altitude: under 2000m, under 10,000m
RH: ?75% at 0-40°C
Electromagnetic Compatibility: in a RF field or 1 V/m on all ranges and function except Capacitance
Total Accuracy: specified +5% of range Capacitance not specified in RF fields performance above 1 V/m is not specified
AC Power: 110-220V
Set Includes
1 x Digital Multimeter
1 x Test Leads
1 x Type K Thermocouple
1 x RS-232 CD
1 x 9-pin Cable Adapter
1 x AC Power Cord (US/EU/AU/UK)
English User's Manual
* 80000 main and secondary display
* Analog Bar Graph: 23 segments,update 40 time/sec
* Single Analyzed: measure synchronous: (AC+DC), (AC+Hz), (DC+dBm), (dBm+Hz), (Hz+Duty) ; Display synchronous: (°C+°F)
* Freq: 0.5Hz -1000.000000MHz
* Basic DC Accuracy 0.05%
* mV Impedance >1000MΩ
* 16 Freq pts, 1-99% duty selectable square wave output
* Analyzing component of current or voltage signal
* Resistance 0.1Ω - 80MΩ ,10-8000MΩ
* Capacitance 10nF-100µF
* Temp -50 - 1372°C, -58 - 2502°F
* dBm 20 types of reference impedance
* Auto data/peak hold w/ timer
* Rel % measure
* 36hrs dynamic record: MAX/MIN/AVG/MAX-MIN
* Communication: isolated optical RS232
* Measure speed 3/sec
* IEC 61010 CAT II 1000V ; CAT III 600V compliance
* 0.1-99.9% pulse duty cycle measuring
* Set upper and lower limit area measuring
* Timing measuring function and can connect to PC
* Use on production lines, laboratories, factories, radio-technology, R&D, maintenance, repairing work
Specifications
Max voltage between any terminal and earth ground: 1000V RMS
Continuity Beeper: 3kHz Approx
Operating and Storage Temp: 0-50°C, -20 - 60°C
Operating and Storage Altitude: under 2000m, under 10,000m
RH: ?75% at 0-40°C
Electromagnetic Compatibility: in a RF field or 1 V/m on all ranges and function except Capacitance
Total Accuracy: specified +5% of range Capacitance not specified in RF fields performance above 1 V/m is not specified
AC Power: 110-220V
Set Includes
1 x Digital Multimeter
1 x Test Leads
1 x Type K Thermocouple
1 x RS-232 CD
1 x 9-pin Cable Adapter
1 x AC Power Cord (US/EU/AU/UK)
English User's Manual

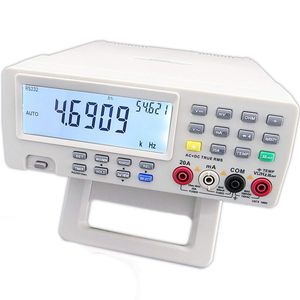

DMM Digital Bench Top Multimeter PC Analog Bar Meter
