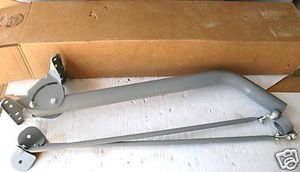

Dish 500/1000 Mast/Foot Strut

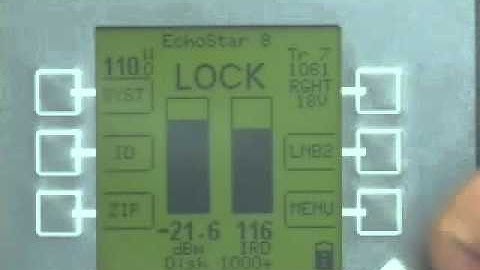

hi I'm Tom Haywood today we're going to install a dish network dish 1000 + LMB an antenna system using our super buddy meter step 1 is to mount the probe plumb preset the vertical angle and the skew setting of your antenna and then mount it on the post the dish 1000 plus is unique and as much as it has for EDD envies the center L&V is the one 18.7 FSS satellite and the 119 DBS satellite and then the left LM B is the 129 and the right lnb is the 110 the proper meter setup for a dish 1000 plus installation is as follows we push our system soft key in the upper left corner we push the inner button to select the service type and in this case we'll arrow up to DISH Network and press ENTER after doing so we then choose the system type and as I mentioned we're doing a 1000 plus install so we'll down arrow to highlight the 1000 plus and press enter and you'll see the meter defaulted to a dish p
