Description

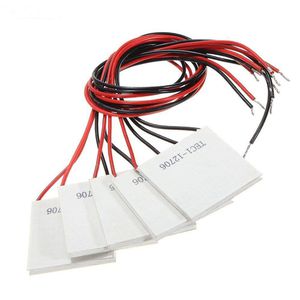

Diymore 5pcs TEC1-12706 12V 6A 40MMX40MM Heatsink Thermoelectric Cooler Peltier Plate Module
Specification:
Component Pairs: 127
Chip Model: TEC1-12706
Dimensions: 40 * 40 * 3.6MM
Assembly Pressure: 85N / cm2
Rated Voltage: DC12V (Vmax: 15.5V)
Working current: Imax = 6A(rated voltage starting 4.5A)
Maximum temperature difference: △ Tmax (Qc = 0) 62 ℃ above
Internal resistance: 2.0 ~ 2.2Ω (ambient temperature 23 ± 1 ℃, 1kHZ Ac test)
Lead Specifications: Lead wire length: 300 ± 5mm RV standard; Tinning Single-head: 5mm
Working Environment Temperature Range -55 ℃ ~ 83 ℃ (high ambient temperature will directly affect the cooling efficiency).
Package Included:
5X TEC1-12706 Heatsink Thermoelectric Cooler Cooling Peltier Plate Module
Specification:
Component Pairs: 127
Chip Model: TEC1-12706
Dimensions: 40 * 40 * 3.6MM
Assembly Pressure: 85N / cm2
Rated Voltage: DC12V (Vmax: 15.5V)
Working current: Imax = 6A(rated voltage starting 4.5A)
Maximum temperature difference: △ Tmax (Qc = 0) 62 ℃ above
Internal resistance: 2.0 ~ 2.2Ω (ambient temperature 23 ± 1 ℃, 1kHZ Ac test)
Lead Specifications: Lead wire length: 300 ± 5mm RV standard; Tinning Single-head: 5mm
Working Environment Temperature Range -55 ℃ ~ 83 ℃ (high ambient temperature will directly affect the cooling efficiency).
Package Included:
5X TEC1-12706 Heatsink Thermoelectric Cooler Cooling Peltier Plate Module
Diymore 5pcs TEC1-12706 12V 6A 40MMX40MM Heatsink Thermoelectric Cooler Peltier Plate Module
